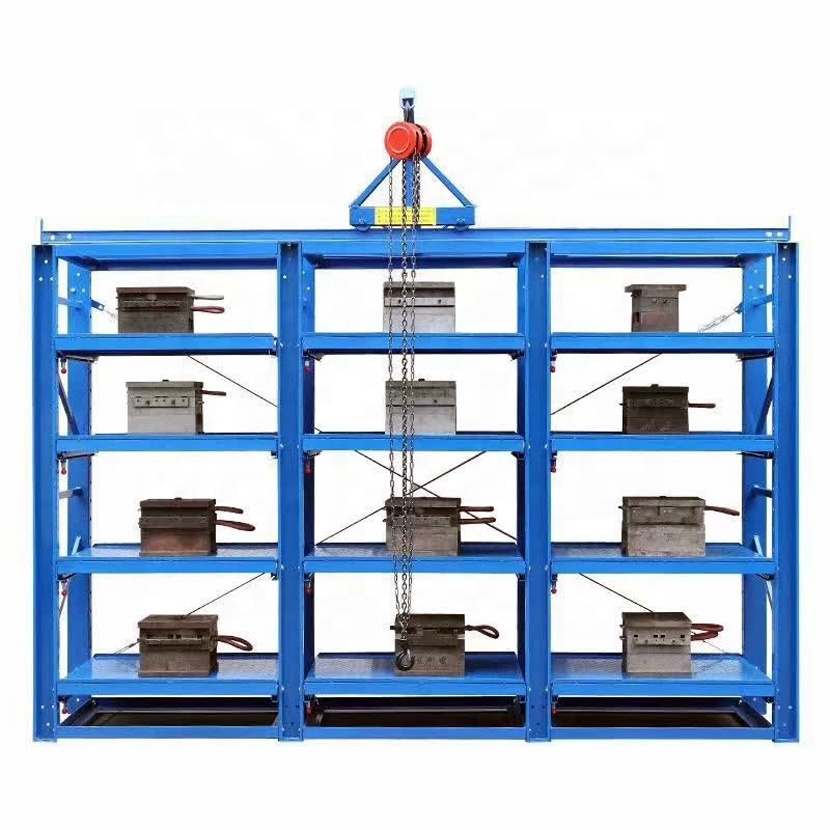

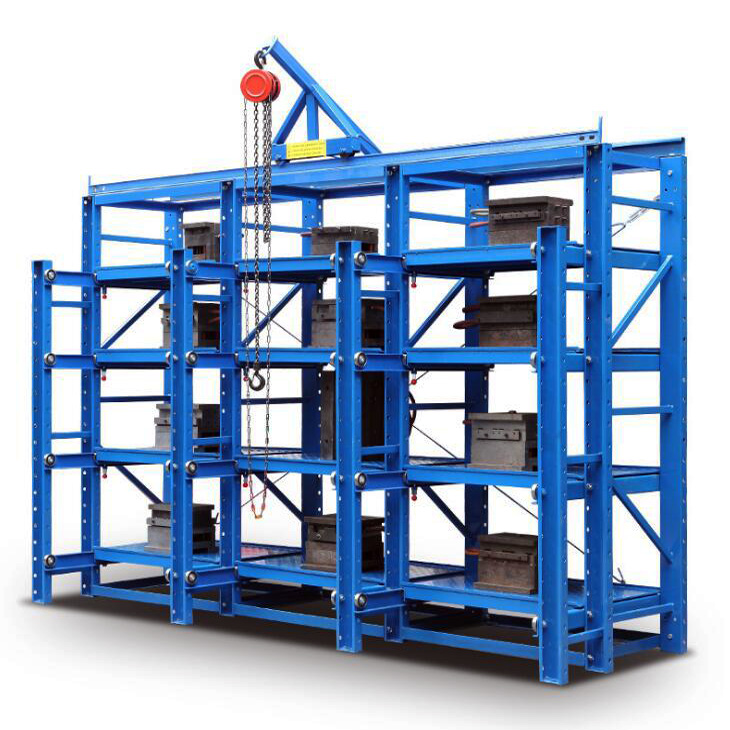

Mold rack mainly stores various kinds of molds. According to loading capacity, it is divided into drawer type mold rack and open-type mold rack. The top of the mold rack can be equipped with a crane and manual hoist for easy lifting and sling operations.
| Standard Size | Layer | Loading Capacity | Bearing | Upright (mm) | Board Thickness (mm) |
|---|---|---|---|---|---|
| L3100 * D600 * H2000 mm | 4 | 1000 kg / drawer | Model 6403 | 100 * 40 * 4 | 2.0 |

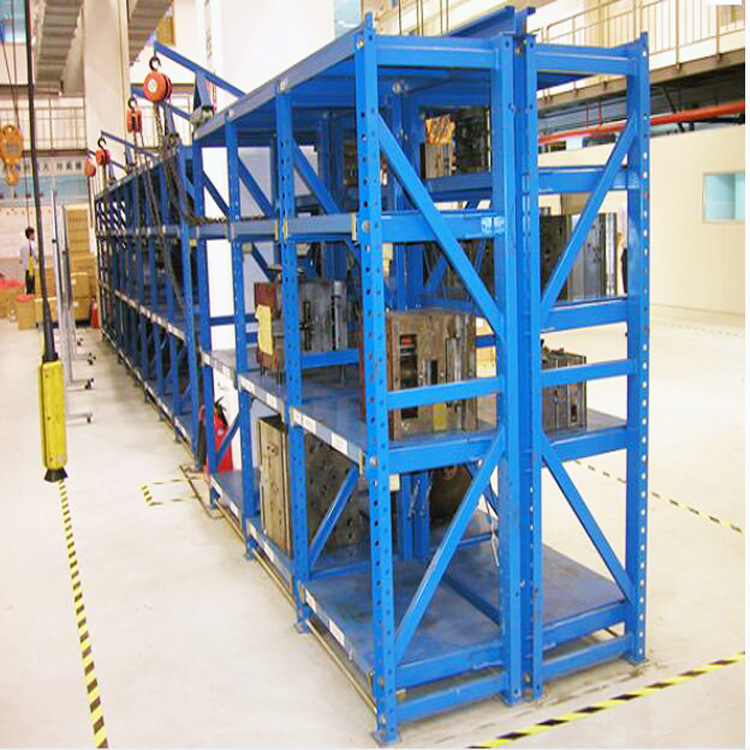

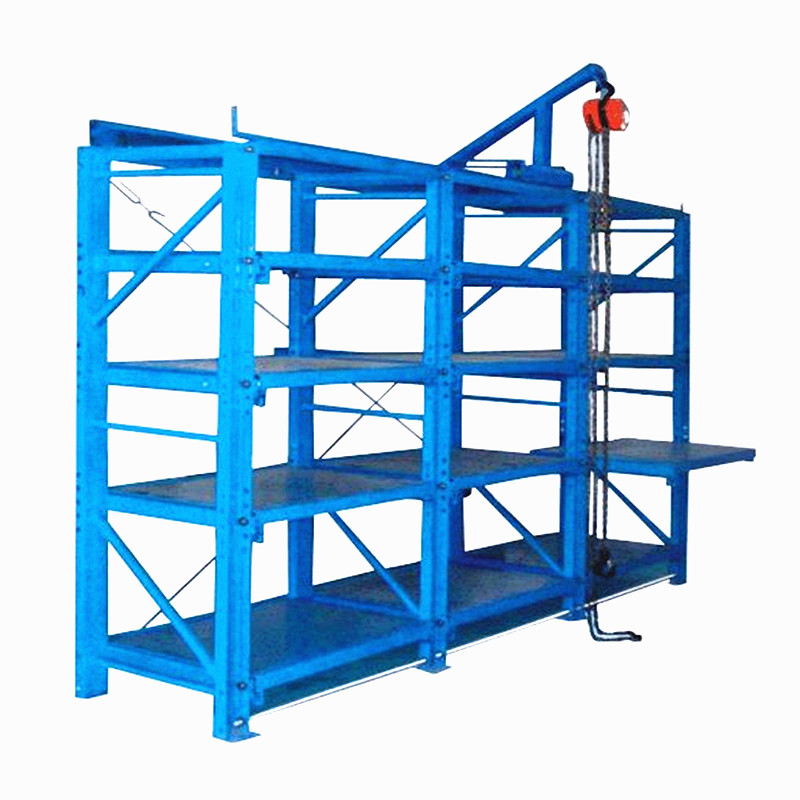

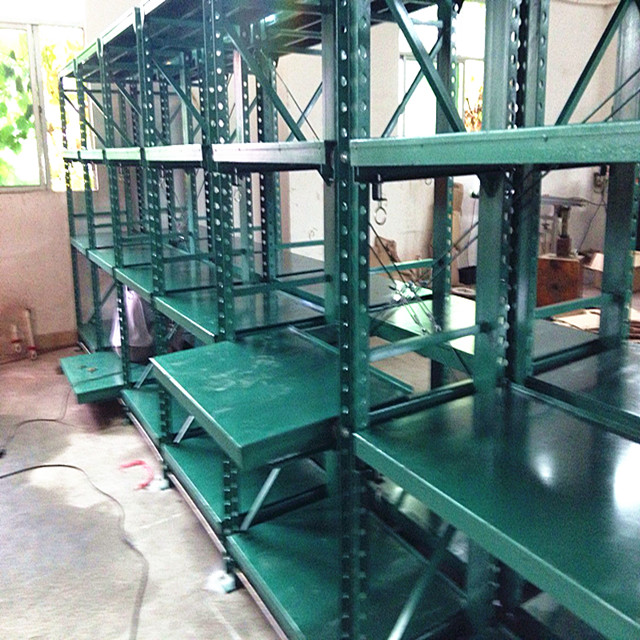

| Product | Drawer Type Mould Rack |
| Material | High-Quality Channel Steel |
| Standard Size | L3100 * D600 * H2000 mm |
| Color Options | Green, Blue (Customizable) |
| Loading Capacity | 1000 KG / drawer |
| Surface Treatment | Powder Coated |
| Packing | Air Bubble Wrap |
| Standard Size (mm) | Layer | Loading Capacity | Bearing | Upright (mm) | Board Thickness (mm) |
|---|---|---|---|---|---|
| L3100 * D800+400 * H2000 | 4 | 2000 kg / drawer | Model 6403 | 100 * 40 * 4 | 2.0 |

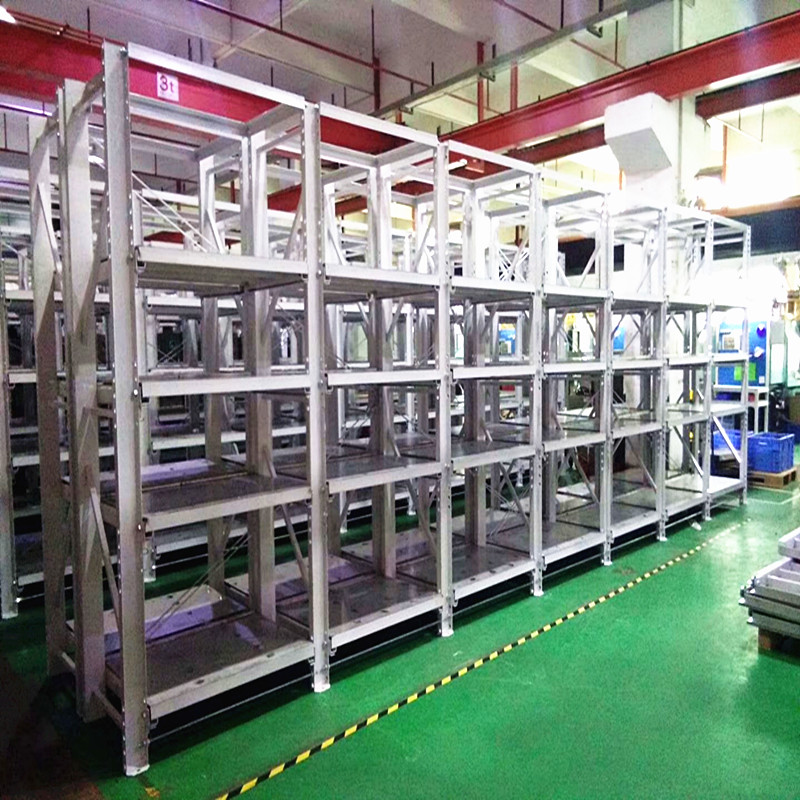

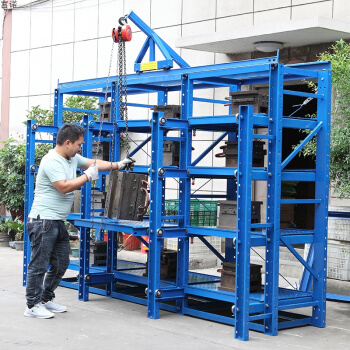

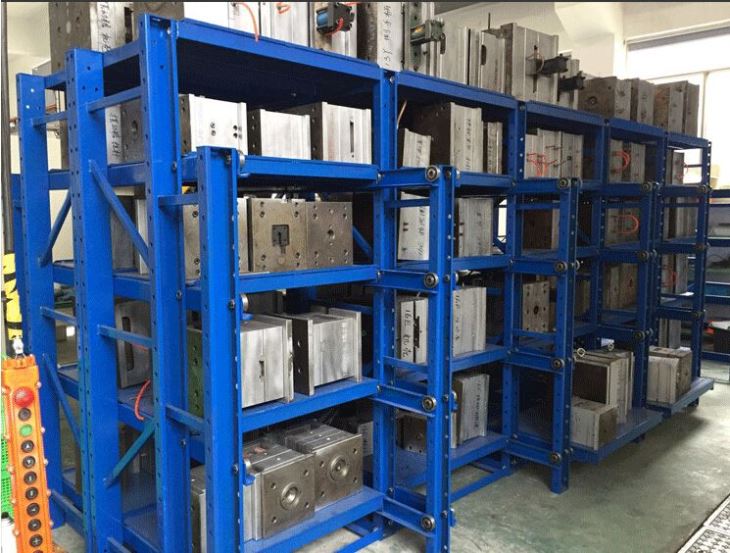

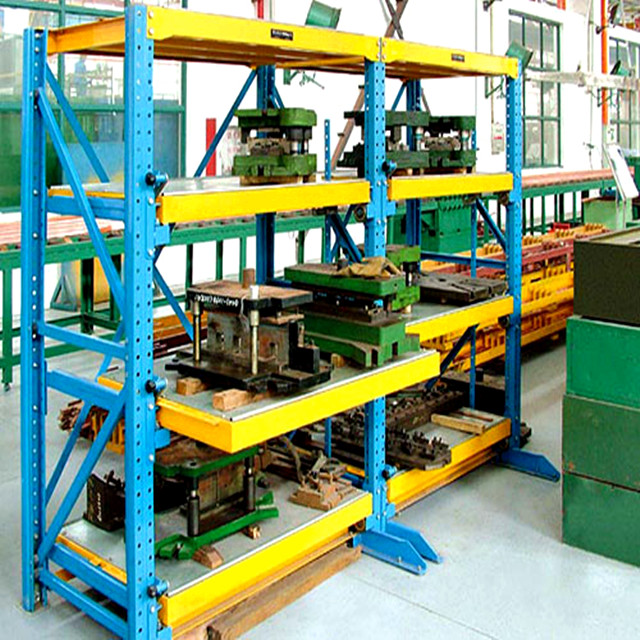

| Product | Full Open Mould Rack |
| Material | High Quality Channel Steel |
| Standard Size | L3100 * D800+400 * H2000 mm |
| Color Options | Green, Blue (Customizable) |
| Loading Capacity | 1000 kg / drawer |
| Surface Treatment | Powder Coated |
| Packing | Air Bubble Wrap |
| Feature |

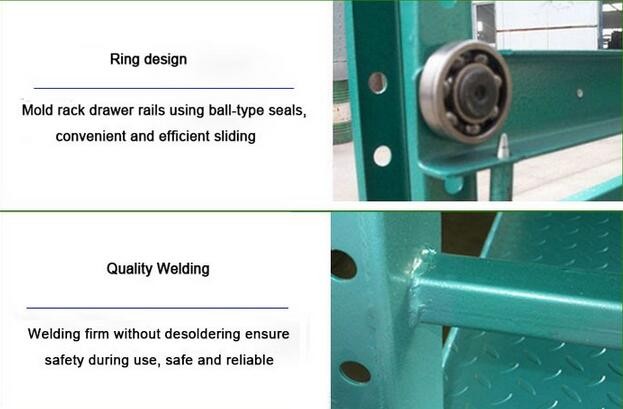

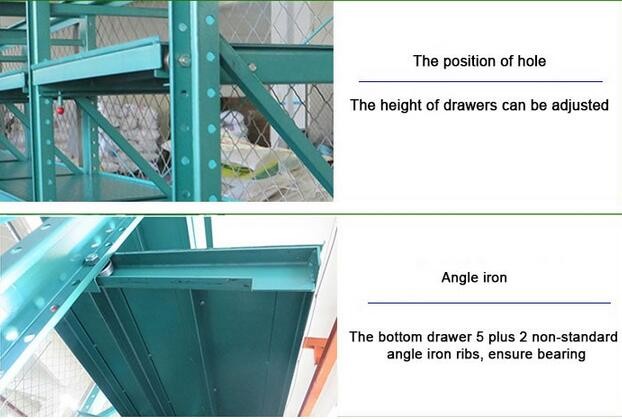

• Easy to remove shelf boards with adjustable vertical spacing. • Each group features pulleys and handy-lift hoist block for effortless storage and unloading of molds. • Compact multi-set mold storage per section to save floor space and enable quick locating. |
|---|---|
| Technological Details |

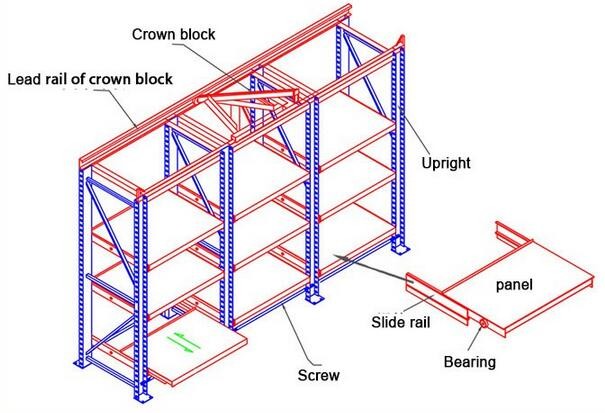

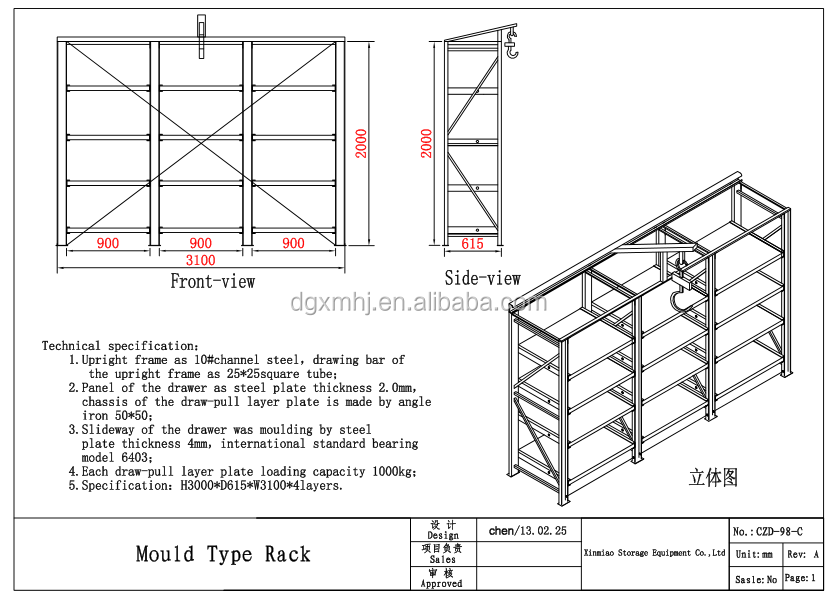

• Post: 10# channel steel with 25*25 square pipe diagonal bracing. • Backing Plate Rack: 50*50 angle iron; Board: 2mm iron plate. • Sliding Chute: Folded 4mm iron plate. • Bearing Capacity: 800-1000kg / backing plate. |
| Material | High-quality cold-rolled steel Q235 |
| Color Options | Standard green (custom color available upon request) |

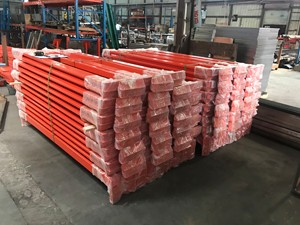

| Packaging Term | Foam and wooden cases as required |
| Delivery Time | Within 15 days after order confirmation |

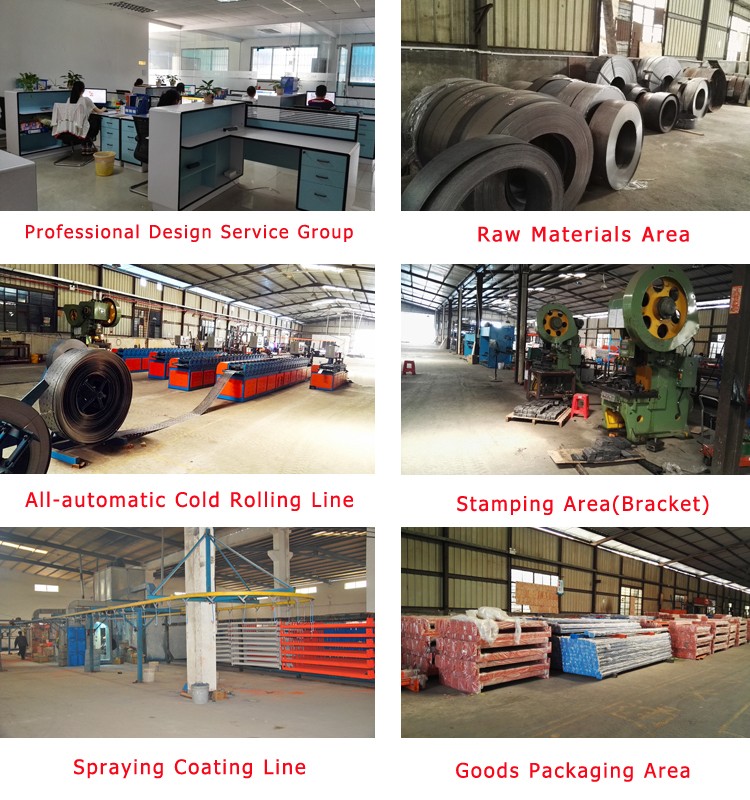

Dongguan Xinmiao Storage Equipment Co., Ltd. devotes itself to the design and manufacture of premium storage equipment. We specialize in producing pallet racking, longspan shelving, warehouse racks, mould racks, wire containers, mobile filing cabinets, cantilever racks, rivet shelving, drive-in racks, mezzanines & platforms, carton flow racks, stacking racking, and related warehousing solutions.
