High-Yield Structural Steel
Profiles roll-formed from premium certified steel coils to withstand cyclic warehouse loading and heavy point-load concentrations without long-term deflection.
Engineering Excellence
Engineered Pallet Storage Systems for Modern Logistics
Signature Racking Systems manufactures heavy-duty pallet racking engineered to optimise cubic space, increase picking speed, and ensure workplace safety across regional 3PL hubs, cold chain facilities, and industrial manufacturing plants.
Global Standard Compliance
Engineered and calculated according to European FEM 10.2.02 and EN 15512 codes, backed by certified deflection limits, safety pins, and heavy anchoring systems.
Factory-Direct Delivery
Direct fabrication in our Ajman Free Zone plant gives global procurement teams shorter lead times, strict batch testing, and tailored OEM export packaging.
Configuration Matrix
Complete Industrial Pallet Racking Portfolio
Select from flexible modular systems designed for specific inventory rotation protocols, pallet handling equipment, and building height envelopes.

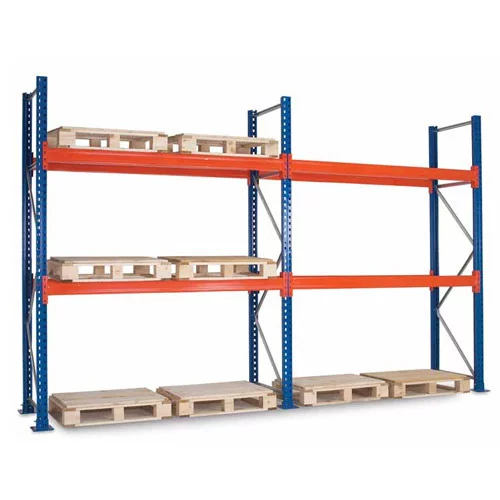

Selective Pallet Racking
The global benchmark for multi-product warehouses. Grants unhindered direct access to every single pallet position without moving adjacent inventory.
- 100% individual pallet selectivity
- Compatible with all standard counterbalance & reach trucks
- Fully adjustable beam levels on a 50mm pitch

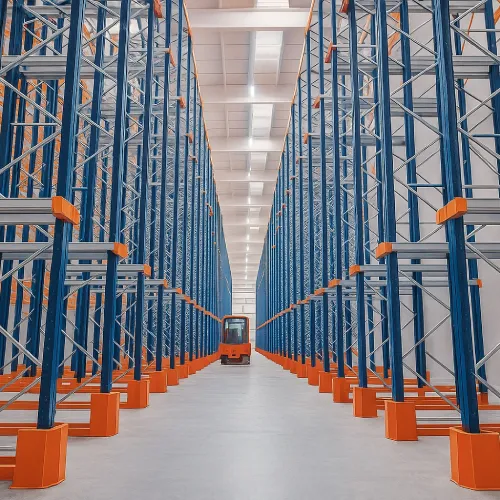

Drive-In / Drive-Through Systems
High-density storage system eliminating access aisles. Handling equipment navigates directly into structural lanes on a Last-In, First-Out (LIFO) or FIFO basis.
- Up to 85% reduction in cubic floor space consumption
- Ideal for low-variety, high-volume batch items
- Maximises thermal efficiency in cold storage chambers

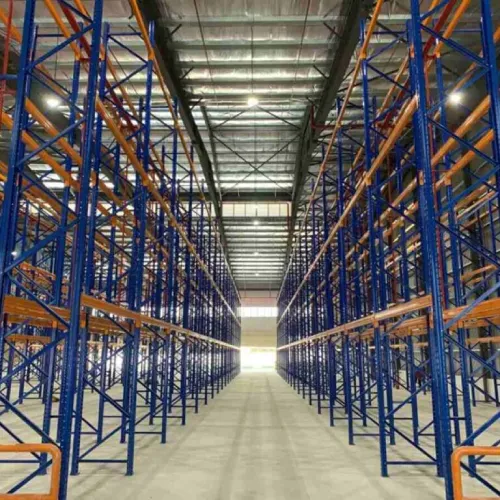

Push-Back & Dynamic Flow Racks
Gravity-driven nested cart or roller systems providing dynamic, compact storage. Pallets are fed and retrieved along single aisles or dedicated intake-dispatch lanes.
- Automatic pallet presentation saves transit time
- 2 to 6 pallets deep per loading lane
- Built-in brake rollers and safety stops
Technical Parameters
Technical Specifications & Engineering Benchmarks
Every racking system is calculated according to your building geometry, concrete slab capacity, seismic zone, and operational equipment footprint.
| System Attribute | Standard Industrial Specification | Heavy-Duty & Custom Specification |
|---|---|---|
| Upright Frame Depths | 800 mm / 1,000 mm / 1,100 mm (Euro & ISO Pallets) | Custom depths up to 1,500 mm for industrial containers |
| Frame Heights | Up to 12,000 mm continuous single profile | Spliced configurations up to 24,000 mm for VNA warehouses |
| Beam Section Capacities | 1,000 kg – 3,000 kg per beam pair (UDL) | Up to 4,500 kg per level with reinforced box-beam sections |
| Pitch Adjustment | 50 mm / 75 mm vertical modular increments | Boltless hooked connector brackets with integrated safety locks |
| Surface Finishing | High-adhesion electrostatic polyester powder coating | Hot-dip galvanised finish (corrosion class C4/C5 for cold/chemical storage) |
| Design Compliance | EN 15512:2020 / FEM 10.2.02 / SEMA codes | Local Civil Defence approvals & third-party structural load certification |
Industry Use Cases
Engineered for High-Throughput Warehouse Sectors
Turnkey pallet storage installations built to withstand high operational cycles across diverse trade and manufacturing environments.

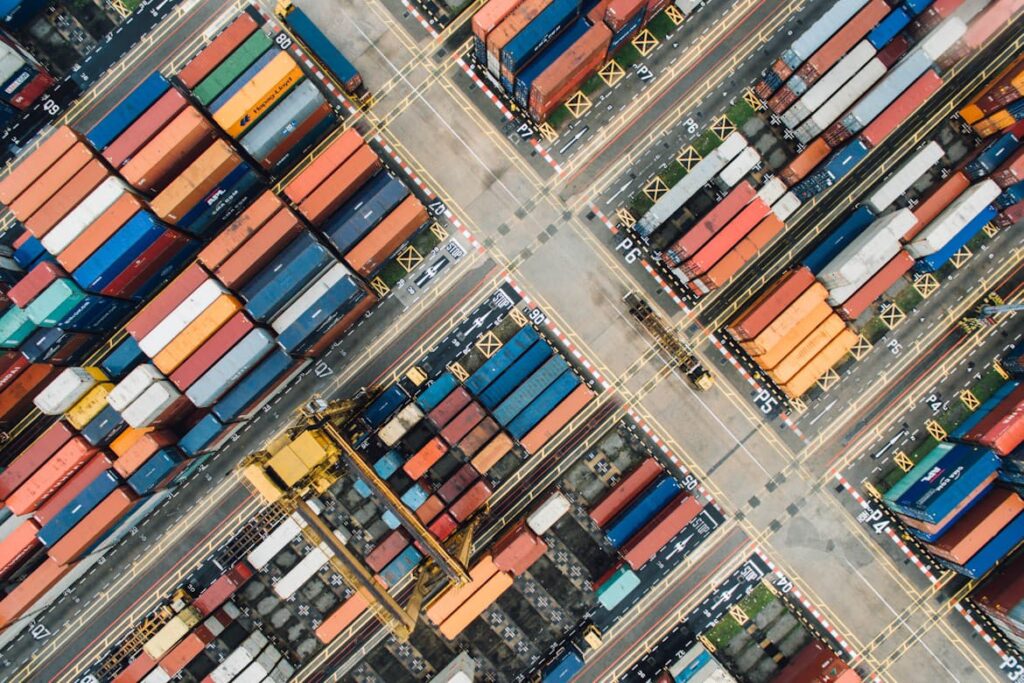

3PL & Contract Logistics
Fast SKU turnover, continuous multi-shift loading, and complete compatibility with barcode and WMS inventory systems.

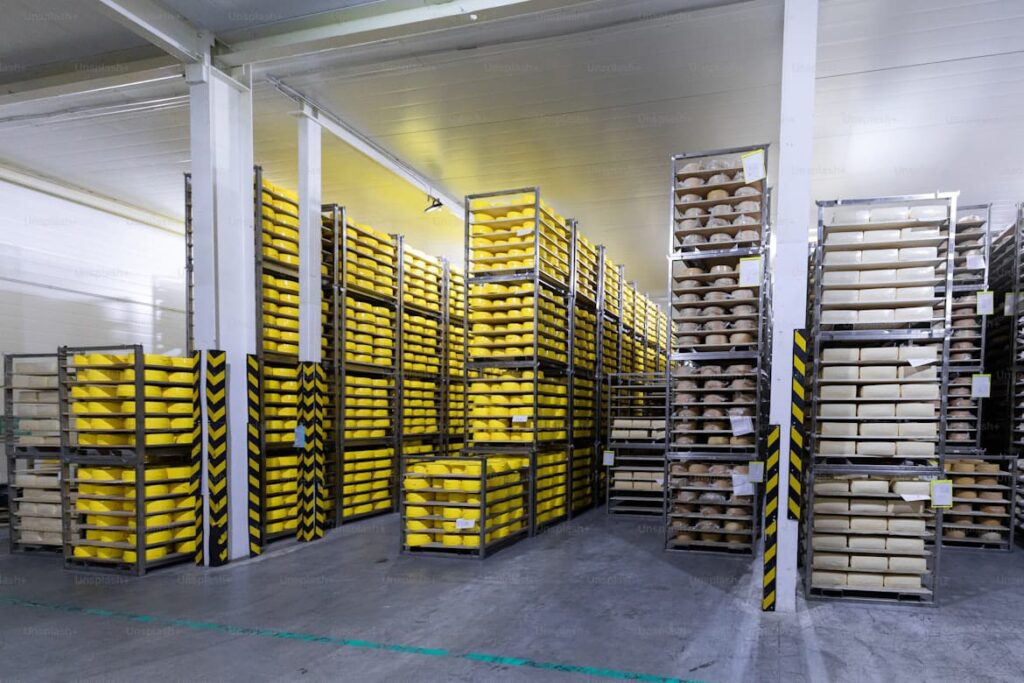

Cold Chain & Food Storage
Galvanised steel and high-density drive-in configurations engineered to resist condensation down to -30°C.

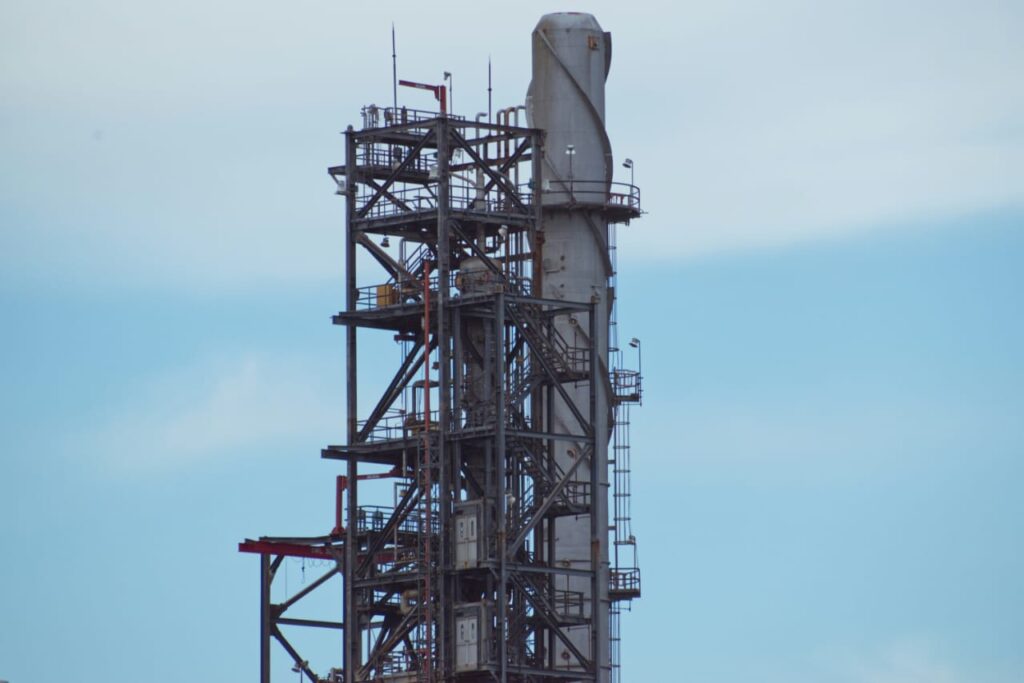

Heavy Manufacturing & Parts
Reinforced beam structures designed to handle steel dies, heavy machinery assemblies, and high-density metal components safely.

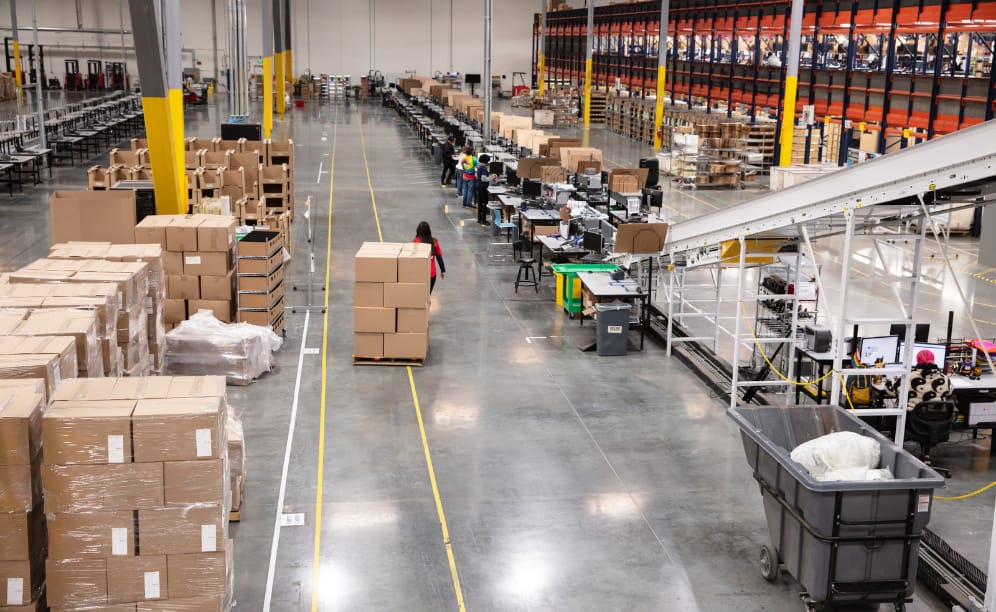

Retail & E-Commerce Hubs
Hybrid configurations combining lower-level hand-picking shelf decks with high-bay bulk reserve pallet storage above.
Procurement FAQs
Frequently Asked Questions on Pallet Racking
Key technical details and engineering insights for procurement directors, operations managers, and facility consultants.
What international safety standards do your pallet racking systems conform to?
All Signature racking lines are engineered according to European FEM 10.2.02, EN 15512, and ISO quality management guidelines. Components include standard beam safety pins, heavy baseplates, and load ratings certified by structural engineers.
Can you design systems for seismic or corrosive coastal environments?
Yes. We offer hot-dip galvanised steel, marine-grade epoxy powder finishes, and structural seismic engineering calculations specifically tailored to regional GCC building codes and harsh ambient temperatures.
What is the maximum load capacity per beam level?
Standard configurations support 1,000 kg to 4,500 kg per beam level uniformly distributed load (UDL). Upright profiles are custom rolled to sustain warehouse clear heights exceeding 12 metres.
Do you handle export documentation and knock-down container shipping?
Yes. Our facility in Ajman Free Zone routinely bundles knock-down components with seaworthy steel strapping, moisture barrier wraps, clear installation markups, and complete packing lists for hassle-free customs clearance.
Need an Engineered Pallet Racking Layout for Your Site?
Send your warehouse drawings and pallet specifications. Our in-house technical team will generate a compliant CAD plan and formal commercial proposal within 24–48 hours.
