Total Modularity
Engineered with equidistant slotting that accommodates rapid vertical re-pitching as stock dimensions vary over operational life.
Factory-Direct Storage Systems
Custom Modular Shelving Built for Maximum Utility and High Payloads
Manufactured in our Ajman Free Zone facility, Signature Racking Systems delivers high-precision slotted angle shelving built from certified prime steel. Designed to eliminate spatial inefficiency, our bolted modular shelving offers versatile load configurations for warehouse stockrooms, distribution hubs, records archives, and industrial workshops across the Middle East and worldwide export markets.

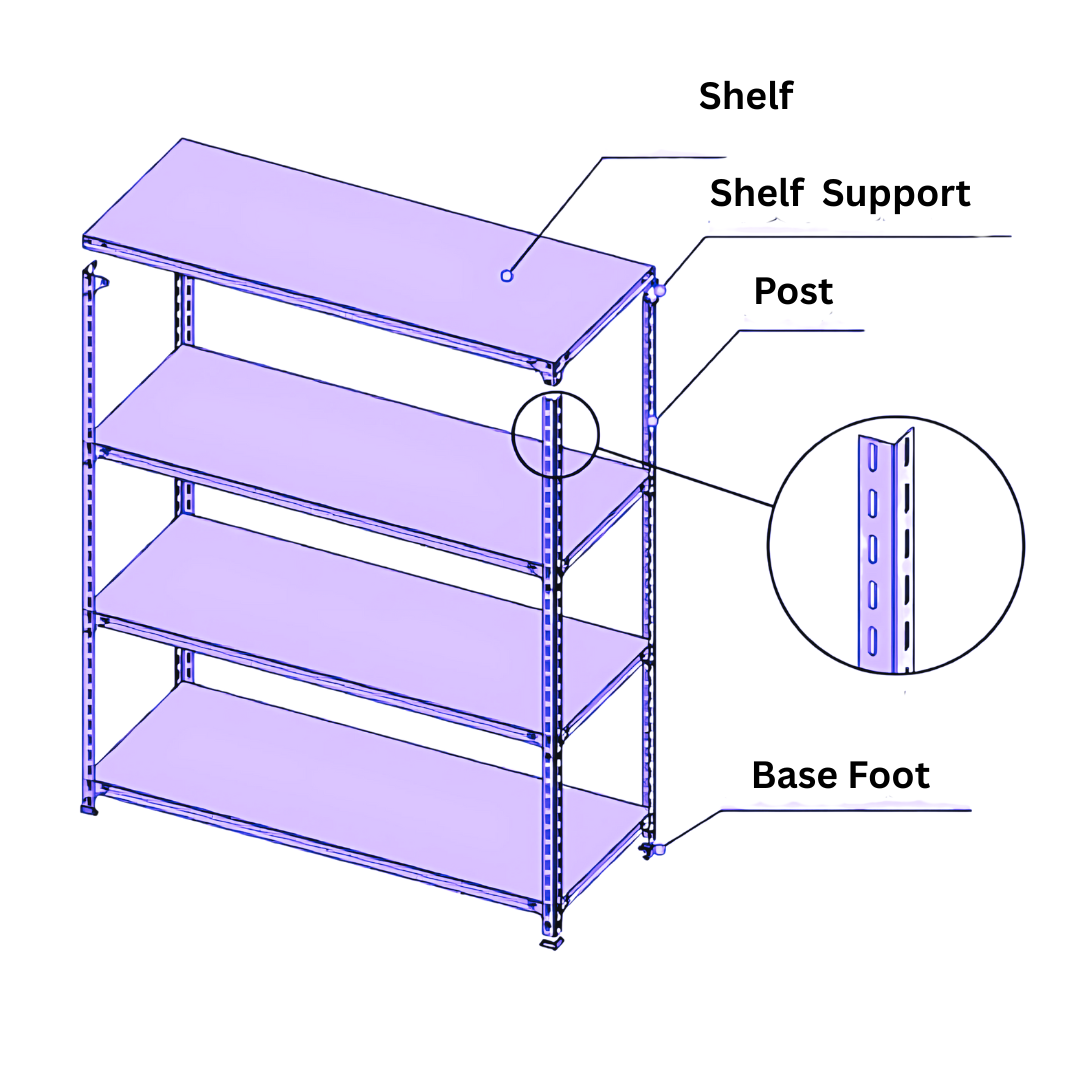

- Standard & Heavy-Duty Uprights
- Powder Coated or Hot-Dip Galvanized
- Adjustable Shelf Pitches (50mm increments)
- Pre-punched Knocked-Down Export Packing
1,200kgMax shelf capacity (heavy-duty tier)
50mmPrecision pitch for flexible slot adjustment
80μmHot-dip galvanized coating available
100%Certified prime grade structural steel
Engineering Advantages
Why Procurement Engineers Prefer Our Slotted Angle
Manufactured with automated roll forming and high-precision CNC punch units, our shelving delivers seamless modularity and durable structural stability.
High-Strength Corner Bracing
Rigid corner gussets and heavy-duty 8.8 grade fasteners provide superior lateral deflection control under full design loads.
Extreme Anti-Corrosion
Epoxy-polyester hybrid powder coating baked at 200°C or hot-dip galvanization ensure long operational life in challenging climates.
Multi-Tier Adaptability
Configurable into multi-tier walkways, cat-walk integrations, and dense high-rise picking structures without welding.
Production & Application Gallery

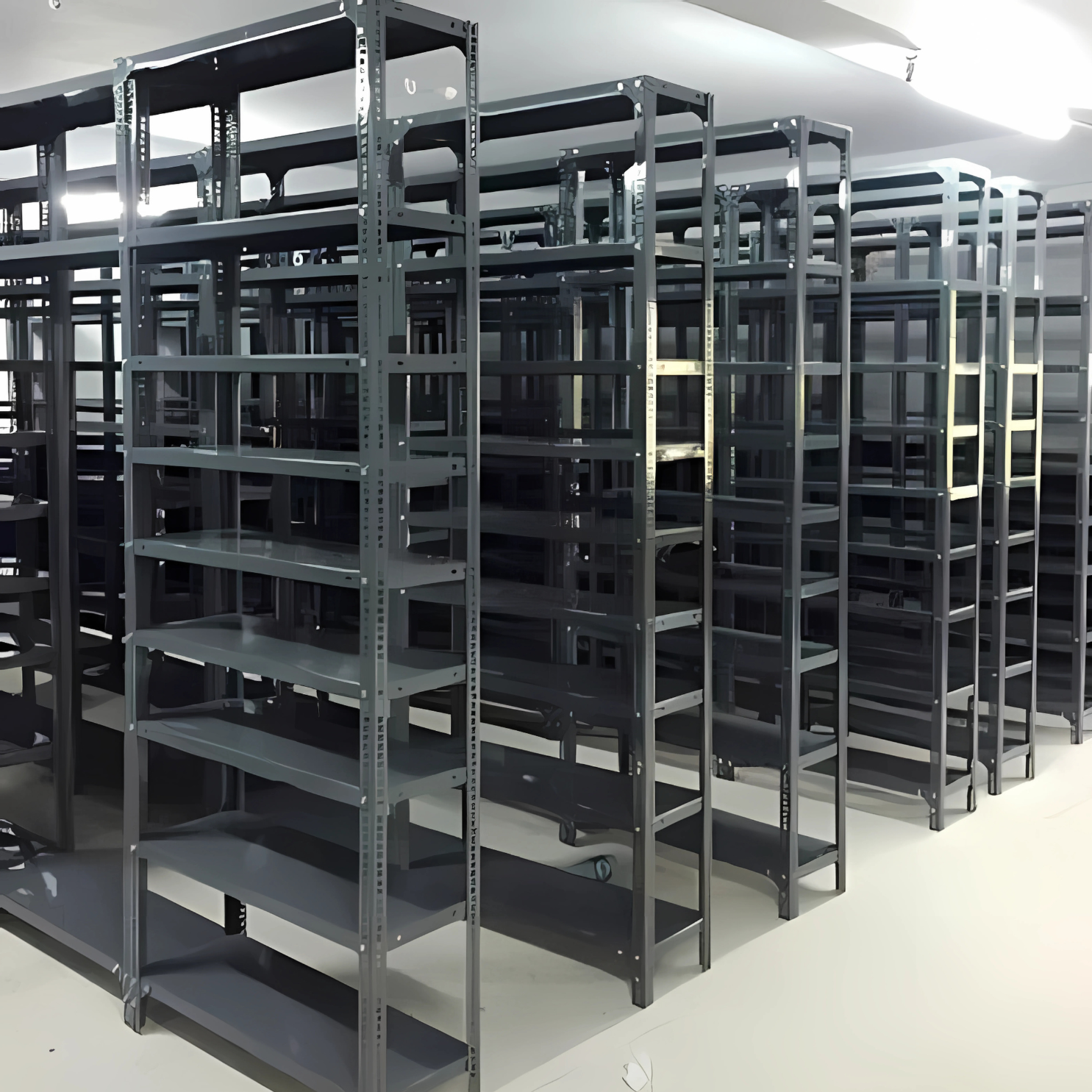

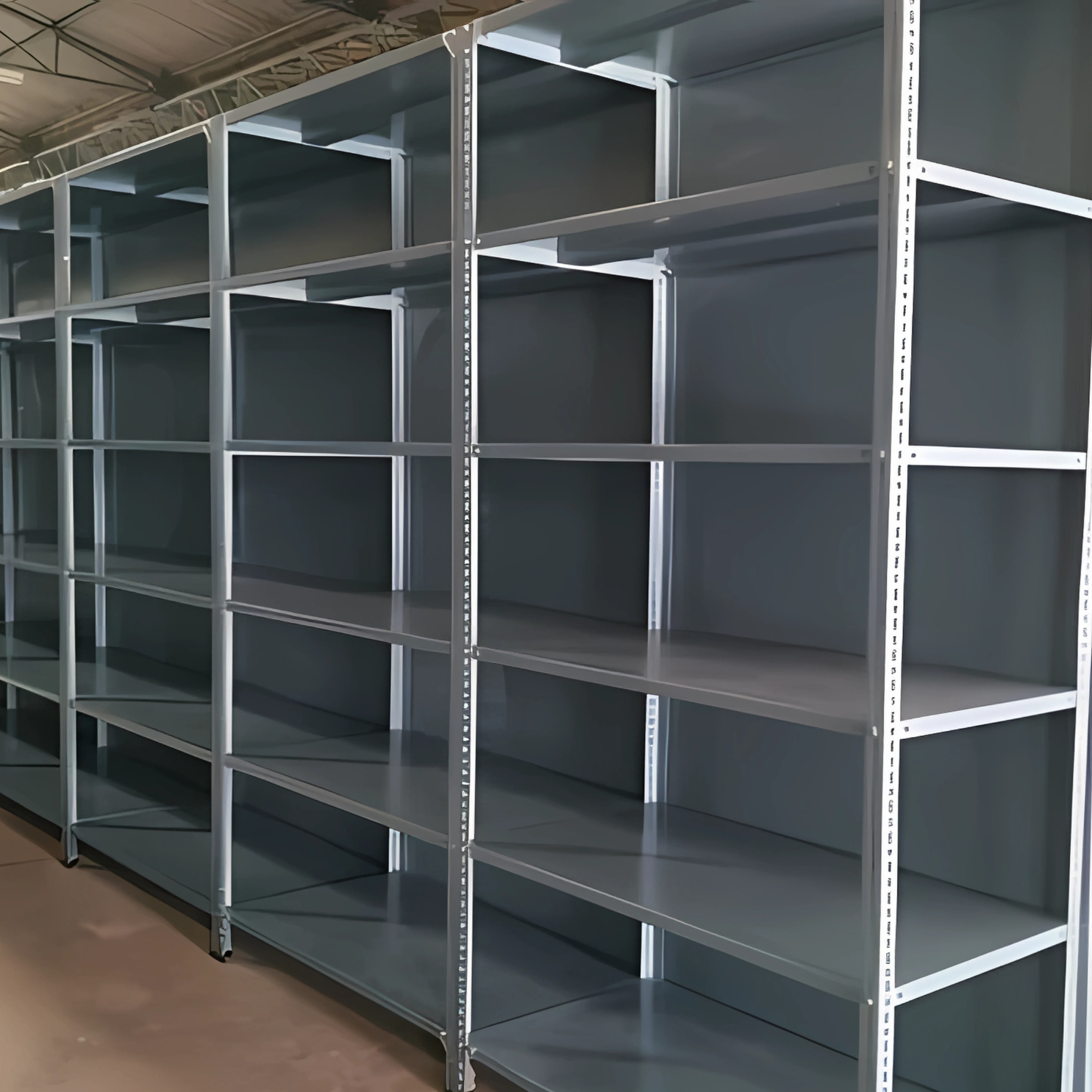

Slotted Angle & Mesh Partition Systems
Field installations and precision-fabricated storage assemblies designed and delivered by our UAE engineering division.
Technical Parameters
Manufacturing & Engineering Specifications
Manufactured under strict ISO quality control procedures and engineered in conformity with regional and international racking safety standards.
| Component / Parameter | Standard Specification | Heavy-Duty & Custom Option |
|---|---|---|
| Steel Grade & Gauge | Cold-rolled prime structural steel (1.4mm to 1.8mm) | Up to 2.5mm high-tensile structural steel (12 Gauge) |
| Angle Profile Dimensions | 40mm x 40mm / 50mm x 50mm equal angles | 80mm x 40mm unequal heavy-duty angles for multi-tier loads |

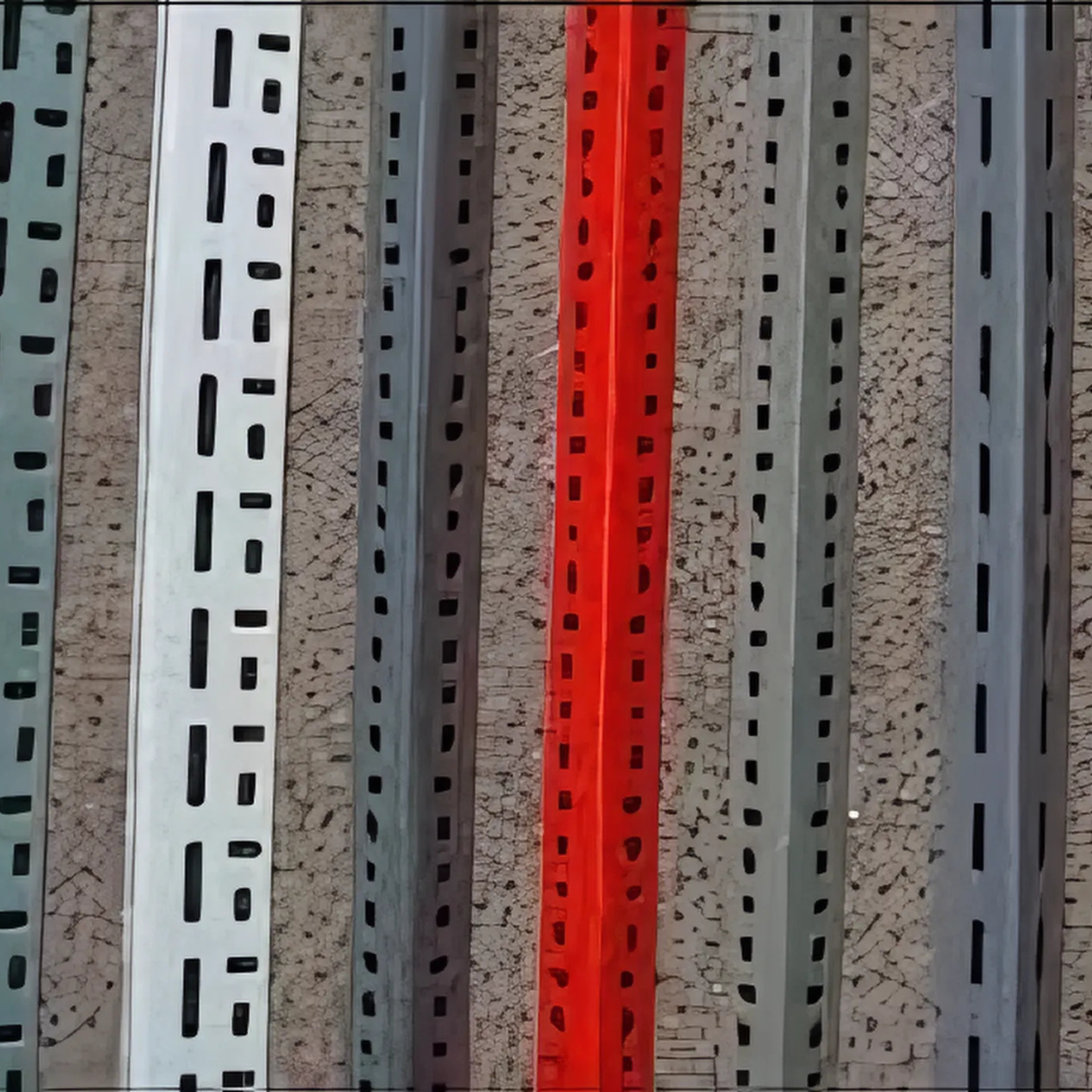

| Slot Pattern & Pitch | Standard CNC oval punch pattern at 50mm centres | Custom modular hole patterns for high-density divider attachments |
| Load Capacity (UDL per Tier) | 150 kg to 300 kg per shelf level | 350 kg to 1,200 kg with reinforcing bottom hat stiffeners |
| Shelf Decking Medium | Cold-rolled solid steel decking panels with hemmed edges | Galvanized wire mesh decks, solid GI panels, or marine ply |
| Surface Finish | Electrostatic epoxy-polyester powder coat (60-80μm) | Hot-dip galvanized (≥80μm) for outdoor or high-salinity ports |
| Fastening Hardware | M8 Zinc-plated high-tensile grade 4.8 bolts & flanged nuts | Grade 8.8 structural bolts with anti-vibration spring washers |
System Selection
Slotted Angle vs Alternative Storage Solutions
Understanding which system delivers the best capital efficiency and operational throughput for your inventory.
Boltless Shelving
- Rapid tool-less mallet assembly
- Ideal for hand-picked cartons
- Lower structural payload capacity (max 400kg)
- Limited versatility for custom fabrication
Most Versatile
Slotted Angle Shelving
- Exceptional cost-to-strength ratio
- Bolted rigid geometry handles up to 1,200kg/tier
- Easily cut, extended, and integrated into walkways
- Flat-packs compactly for economical container export
Selective Pallet Racking
- Designed for heavy palletised SKU storage
- Direct mechanical forklift access
- High capital investment and wide aisle requirement
- Inefficient for loose or bin-based small components
Versatile Applications
Sectors Utilizing Our Slotted Angle Systems
Engineered to adapt across multiple commercial, public, and high-throughput industrial sectors.
Warehousing & Distribution
Fast manual picking of fast-moving items, carton sorting, and packaging material staging.
Automotive Spares & Workshops
High-density bin compartments for fasteners, heavy automotive replacement components, and tools.
Corporate Archives & Record Stores
Durable document storage racks built to standard box depths with non-slip shelf levels.
Pharmaceuticals & Clean Labs
Powder-coated or stainless configurations providing hygienic, easily sanitized batch organization.
Retail Stockrooms & Cash & Carry
Compact behind-the-counter stock organization maximizing floor space in high-rent zones.
Manufacturing Assembly Lines
Integrated workbenches, line-side gravity feed stations, and custom assembly line shelving.
Technical FAQ
Frequently Asked Questions: Slotted Angle Shelving
Key information regarding production specifications, assembly options, and overseas distribution.
What steel thicknesses and finishes are available?
Uprights are manufactured from 1.4mm to 2.5mm cold-rolled prime steel. Shelves range from 0.7mm up to 1.5mm. We provide oven-baked epoxy-polyester powder coating (standard in industrial grey, blue, and safety orange) as well as hot-dip galvanization for corrosive environments.
How is the load capacity calculated for each shelf level?
Load ratings are based on Uniformly Distributed Load (UDL). Standard levels support 150 kg to 300 kg. By adding roll-formed bottom hat-stiffeners and utilizing heavy-duty corner plates, capacities can be engineered up to 1,200 kg per shelf level.
Can this shelving be packaged for containerized international export?
Yes. We regularly supply overseas contractors and industrial distributors. Components are bundled into compact, protective knocked-down packs with strapped steel banding, corner protectors, and moisture barriers to ensure pristine arrival.
Is customized fabrication possible for non-standard space dimensions?
Because our manufacturing line operates in-house in the UAE, we can shear uprights to exact ceiling clearances, adjust shelf widths, and punch specialized spacing tailored specifically to your facility's spatial constraints.
Need an Engineered Shelving Layout for Your Facility?
Consult with our storage design engineers. We review your site measurements, calculate load limits, and deliver CAD proposals with factory-direct pricing.
