Heavy Duty Pipe Racking Systems: Engineered Storage for Long, Cylindrical & Structural Loads
Storing long cylindrical products—including oilfield tubulars, carbon steel conduits, copper lines, PVC piping, and structural bar stock—presents distinct structural challenges: uneven line loads, significant dynamic deflection, roll-off hazards, and excessive floor consumption. Signature Racking Systems F.Z.C solves these complex logistical pain points through fully certified, custom-engineered pipe racking systems manufactured at our own production hub in Ajman Free Zone.
- Tailored Cantilever & Arm Designs
- Removable Roll-Stop Safety Pins
- Structural H-Beam & Roll-Formed Profiles
- Complete In-House UAE Fabrication
20+Years of industrial storage engineering experience
5000kg+Single-arm load capacity achievable
500+Enterprise projects completed across the UAE & GCC
100%In-house manufacturing & direct accountability
Why Global Engineers Specify Signature Pipe Racking Systems
In-House Ajman Fabrication
From heavy steel coil slitting and automated CNC punching to submerged arc welding and electrostatic powder coating, every stage is fully controlled.
Turnkey Installation Crews

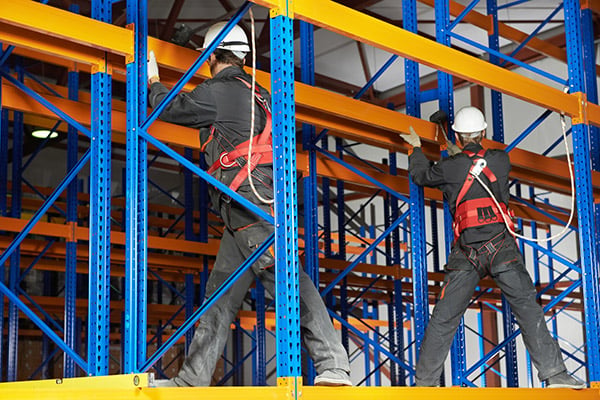

Certified in-house riggers deliver precision base plate anchoring, laser plumb leveling, and load test validations compliant with international safety standards.
Dynamic Roll-Off Protection
Modular retainers, drop-in end stops, and anti-abrasion polymer arm liners prevent rolling incidents and preserve sensitive surface finishes.
Engineered Configurations
Recommended Pipe Racking Systems by Application
Different materials demand targeted structural engineering. Below are our top core industrial configurations designed to maximise footprint utilization and ensure absolute operational safety.

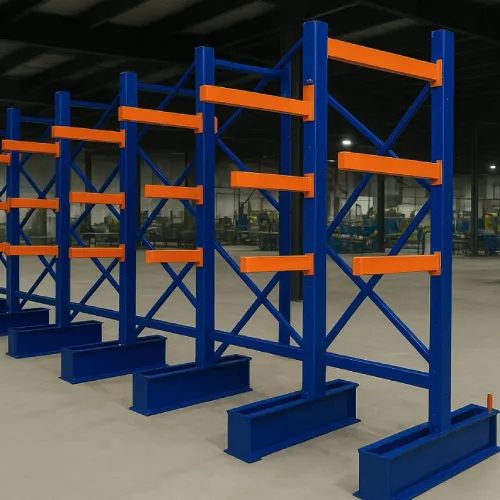

Heavy-Duty Cantilever Pipe Racks

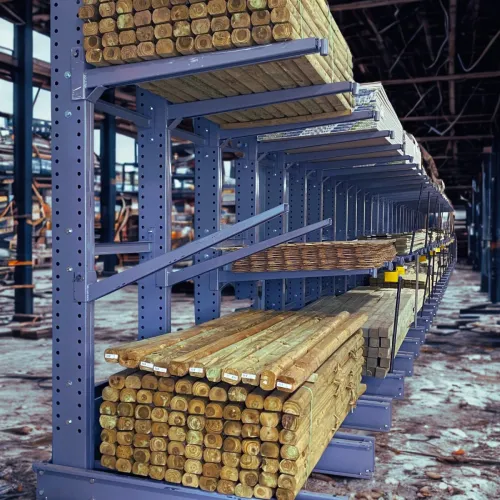

Engineered with hot-rolled structural steel columns and bolted adjustable arms. Eliminates vertical front uprights, granting unobstructed, 100% direct crane or side-loader access for steel conduits, alloy tubulars, and drill pipes.
Double-Sided Central Pipe Racks
Mounted on centralized heavy columns, distributing balanced loads on both sides. Ideal for large warehouse aisles where side-loader forklifts or bridge overhead cranes pick bundles without floor-level interference.
Vertical & A-Frame Pipe Racks
Designed for rapid manual retrieval of lighter conduits, copper tubing, aluminum extrusions, and PVC profiles. Separator dividers keep individual SKUs neatly organized while reclaiming horizontal square footage.
Cradle-Supported Pallet Pipe Racks
Combines heavy-duty selective pallet racking uprights with heavy-gauge V-shaped pipe cradles and support bars. Allows standard counterbalanced forklifts to store bundled tubulars safely inside existing pallet rack layouts.
Strategic Procurement Insights
Future Procurement Trends in Industrial Pipe Racking
How forward-thinking supply chain directors and warehouse engineers are future-proofing their long-material storage investments.
1. High-Density Narrow Aisle & Side-Loader Synergy
Industrial yards are facing mounting real estate costs. Procurement teams are moving away from massive 6-meter turning aisles toward Very Narrow Aisle (VNA) cantilever setups paired with articulated 4-way reach trucks and multi-directional side-loaders. This layout shift recaptures up to 55% of floor space while preserving line-of-sight safety.
2. Integration with Automated Stacker Cranes & AS/RS
As pipe handling transitions to smart automated warehousing, procurement specifications now routinely request structural AS/RS-compatible pipe racking. Automated shuttles and overhead Cartesian retrievers demand millimeter-level fabrication tolerances, high-tensile anchor footings, and integrated sensor bracketings that Signature precisely machines.
3. Extreme Climate Corrosion Resilience & HDG Standards
With energy infrastructure expanding across harsh marine, offshore, and hyper-saline desert hubs, pipe racks must survive relentless environmental exposure. International purchasers now mandate Hot-Dip Galvanizing (ISO 1461) and zinc-rich dual powder finishes over standard paint to guarantee multi-decade corrosion-free lifecycle longevity.
4. Modular Adaptability via Bolted Arm Engineering
Welded-arm cantilever setups are rapidly being superseded by adjustable bolted and pinned cantilever arm connections. Supply lines change frequently; modular arms permit field reconfiguration of vertical beam spacing without cutting torches or on-site welding permits, dramatically reducing operational changeover downtime.
Engineering Horizon
Technological & Engineering Evolution of Pipe Storage
From passive ground stacking to dynamically tracked, automated long-profile logistical ecosystems.
| Evolutionary Era | Storage Methodology | Safety & Roll Hazard | Picking Speed & Selectivity | Space Utilization Ratio |
|---|---|---|---|---|
| Traditional Yard Floor Stacking | Pyramid ground dunnage & timber wedges | High risk of collapse; crush hazards during extraction | Extremely slow (LIFO only; shuffling required) | Low (<25% volumetric efficiency) |
| Standard Roll-Formed Cantilever | Lightgauge punched uprights with fixed arms | Moderate; prone to arm deflection and forklift impact | Fair; 100% direct access to outer loads | Moderate (up to 45% footprint recovery) |
| Heavy Structural H-Beam Systems (Current) | Hot-rolled structural columns with safety stops & polymer liners | Negligible; certified load charts, shock bumpers & pins | High; fully compatible with 4-way side-loaders & cranes | High (60% to 75% vertical space utilization) |
| Automated Roll-Out & AS/RS Systems (Next Gen) | Motorized crank-out arms & smart warehouse integration | Zero worker exposure during mechanical retrieval | Immediate automated barcode / RFID retrieval | Ultra-High (>85% cubic space exploitation) |
Need structural advice on upgrading your yard from floor dunnage to high-density structural cantilever pipe racking? Consult with Signature's senior structural engineers directly from our Ajman manufacturing facility.
Verified Quality Control
Our In-House Pipe Racking Manufacturing Process
Every structural column, arm connector, and base anchor plate passes through our controlled factory workflow in Ajman Free Zone.
01
Load & Deflection Analysis
We analyze outer diameter ranges, bundle weight distributions, and forklift specs to calculate beam deflection and base moments.
02
Precision CAD Engineering
Engineers generate full structural layouts and 3D FEA stress models ensuring compliance with international safety codes.
03
Certified Steel Fabrication

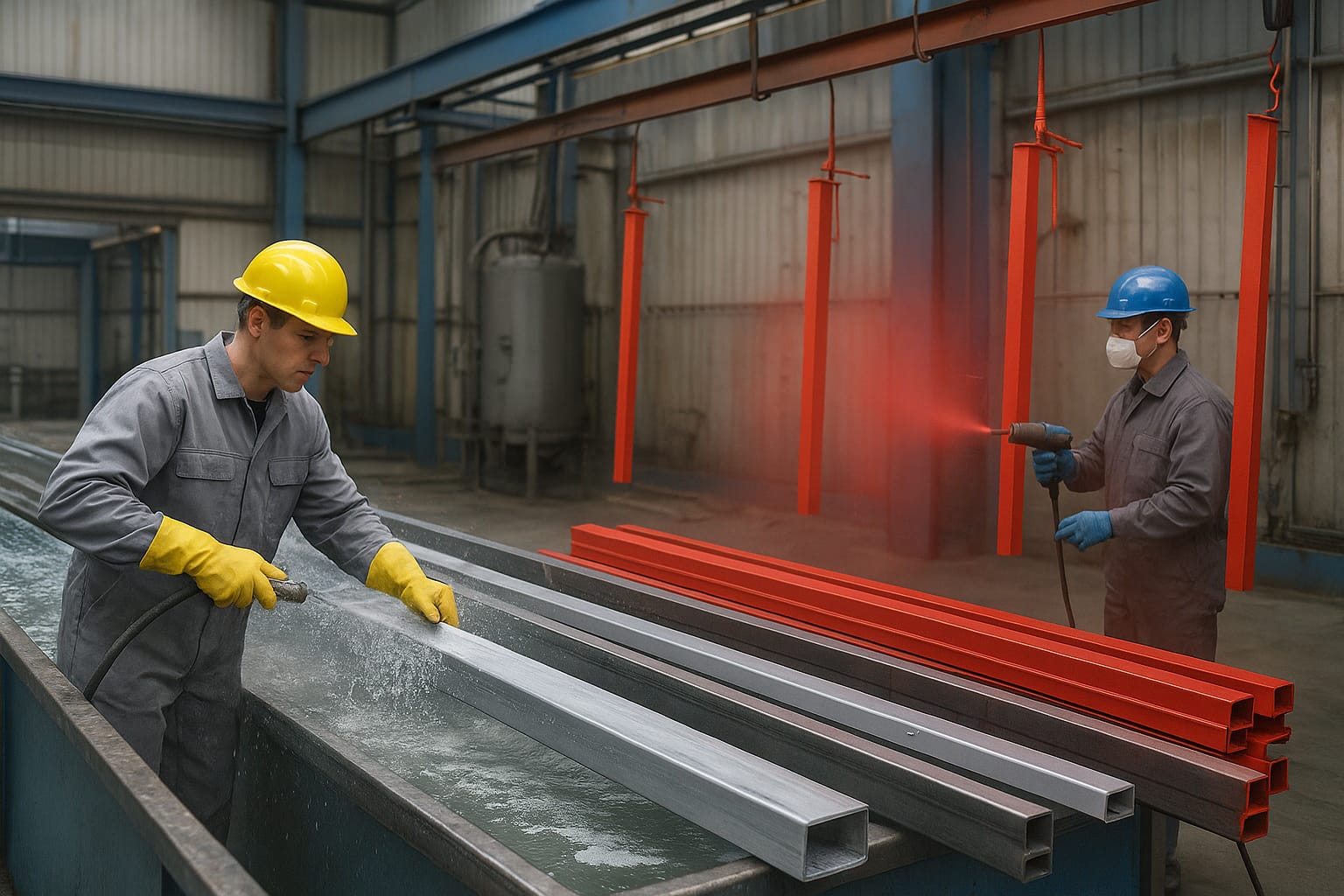

Hot-rolled steel beams undergo precision CNC cutting, robotic welding, automated punching, and durable corrosion protection.
04
Turnkey Anchor & Install
Our dedicated crews execute baseplate core drilling, laser plumb alignment, safety pin fitting, and certified load testing on site.
Inside Our Ajman Manufacturing Facility
Direct manufacturer capabilities ensure that your pipe racking systems are fabricated with tighter tolerances, zero distributor markups, and verified steel mill origins.
20+Years of industrial storage manufacturing authority
The Manufacturer Advantage
Send an Inquiry
Direct UAE Engineering Accountability
Signature Racking Systems F.Z.C is not a reseller or broker. Operating directly from our factory in Ajman Free Zone, we oversee every engineering phase—from raw steel coil validation to finished installation. This full vertical integration ensures our clients obtain heavy-duty pipe racking systems built precisely to project specifications without markup inflation or unvetted subcontracting.
Whether you require a compact vertical racking setup for plumbing profiles or massive, multi-tiered structural cantilever racks for heavy oilfield drilling tubulars, our certified engineers calculate exact arm deflective limits, safety factor ratios, and seismic anchoring criteria to guarantee 100% compliant operational environments.
Engineered to Order
Custom arm lengths, variable pitch spacing, and weight ratings suited to your precise bundle dimensions.
Uncompromising Steel Standards
Fabricated using certified structural steel with rigorous weld-integrity and dynamic load stress checks.
Global Supply & Turnkey Service
Supplying completely knocked-down kits overseas or providing full turnkey site anchoring across the UAE and GCC.
Proven Environments
Industries Relying on Our Pipe Racking Systems
Our heavy-duty cantilever and pipe storage racking systems are deployed in heavy industries requiring high load stability.
Construction & Building Materials
Oil & Gas Piping Yards
Steel Traders & Extrusion Hubs
Automotive & Tubular Fabrication
Water Treatment & Sanitary Conduit
Heavy Industrial Machinery & Marine
Infrastructure & Utilities
Plumbing & Electrical Distributors
Procurement Clarity
Frequently Asked Questions on Pipe Racking Systems
Comprehensive engineering insights responding directly to common procurement and structural inquiries.
What structural type of pipe racking system is best suited for heavy industrial steel pipes?
For heavy industrial steel pipes, structural H-beam cantilever racking is the industry standard. Unlike light roll-formed uprights, heavy structural I-beams and hot-rolled sections provide superior deflection resistance and dynamic impact tolerance against heavy forklifts and side-loaders. Individual arm capacities can easily exceed 5,000 kg per level, allowing high-density stacking of drill collars, API line pipes, and solid steel billets.
How do you prevent pipe roll-off and surface abrasion during handling?
Roll-off hazards are eliminated by installing heavy-duty mechanical end-stops, either welded directly or pinned into pre-machined sockets at the arm tip. For sensitive alloys, copper lines, or polished stainless steel pipes, Signature equips the cantilever arms with non-marking Ultra-High-Molecular-Weight (UHMW) polyethylene liners, polyurethane cradles, or vulcanized rubber strips to completely prevent galvanic corrosion and surface marring.
Can Signature Racking Systems engineer outdoor pipe racking systems for coastal environments?
Yes. Because we manufacture everything in our Ajman Free Zone facility, we offer Hot-Dip Galvanizing (HDG) in accordance with ISO 1461 standards, alongside multi-layer epoxy powder coating. This structural treatment prevents oxidation and structural degradation even under intense coastal salt-spray, desert thermal cycling, and high atmospheric humidity typical of the Middle East and worldwide export hubs.
What technical data is required to calculate arm length and column spacing?
To produce an accurate CAD design and load calculation, our structural team requires: minimum and maximum pipe bundle lengths, outside diameter (OD), maximum bundle weight, target rack height, building clear height, and forklift handling mechanism (crane, conventional counterbalance, or side-loader). With this data, we calculate upright spacing to eliminate longitudinal pipe sagging while ensuring stability.
How are knocked-down pipe racking systems exported to overseas projects?

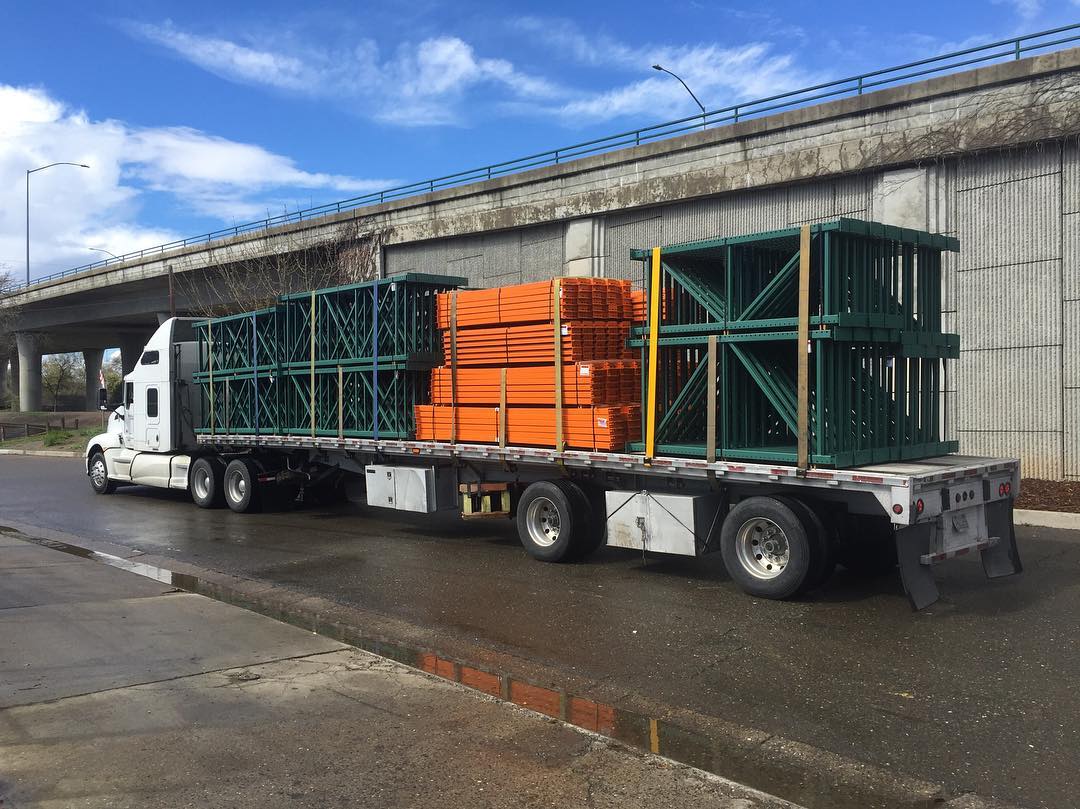

For global contractors and international distributors, our engineering facility packs pipe racking systems in Completely Knocked Down (CKD) configurations. Columns, cantilever arms, and diagonal bracing trusses are grouped on steel runners with protective plastic wrapping, edge guards, and comprehensive assembly markups matching the provided structural engineering drawings.
What is the standard production and delivery lead time?
Because all roll forming, punching, welding, and coating processes take place under one roof in Ajman, lead times are considerably faster than distributors reliant on third-party import chains. Typical custom fabrication runs require 2 to 4 weeks depending on structural tonnage, galvanization specs, and overall project scope.
Proven Reputation
Trusted by Leading Contractors and Industrial Operators
See why procurement officers and operational directors across the region recommend Signature Racking Systems.
Signature engineered and installed custom cantilever pipe racks for our oilfield steel pipes in Sharjah. Flawless welding, fast turnaround, and zero deflection under full load.
Sima BanerjeeLogistics Director
Direct manufacturer interaction made all the difference. Their engineers adapted the arm pitches to our exact PVC pipe bundle heights and handled site anchoring without delay.
Shojil NkOperations Manager
High-quality galvanized outdoor pipe racks delivered and assembled on schedule. Outstanding structural integrity and prompt engineering communication.
Waseem MominPlant Engineering Head
Trusted by Industry Leaders
Optimize Your Long Material Storage Today
Send your pipe specifications, building heights, and tonnage requirements directly to our engineering department for a certified CAD layout and competitive manufacturer quotation.
