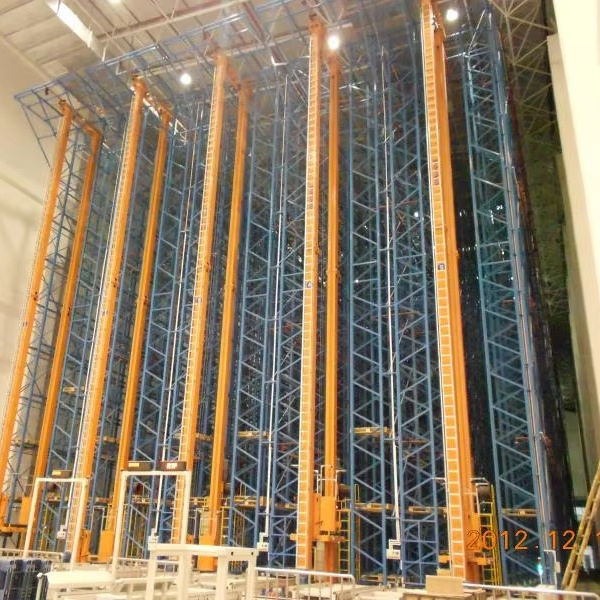

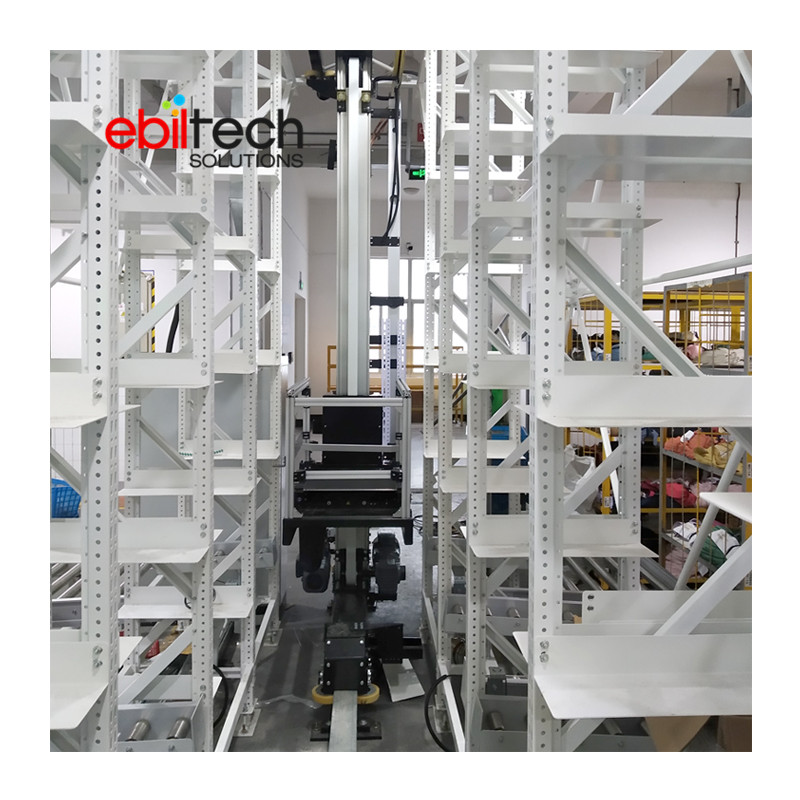

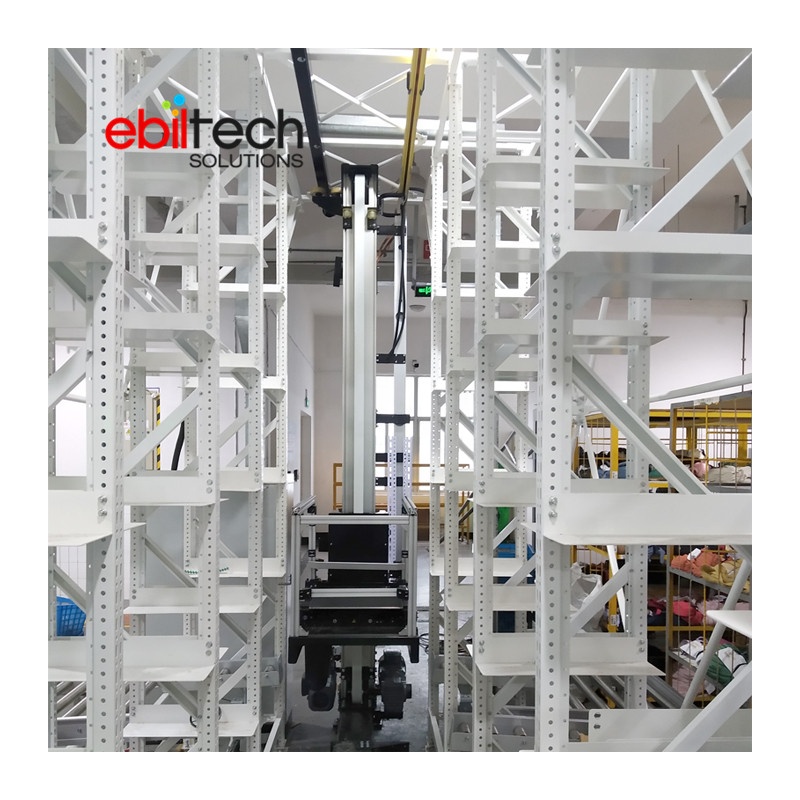

Automated Storage And Retrieval Racking System Miniload Asrs Storage

Product Description

Automated Storage Solution
Warehouse Overview

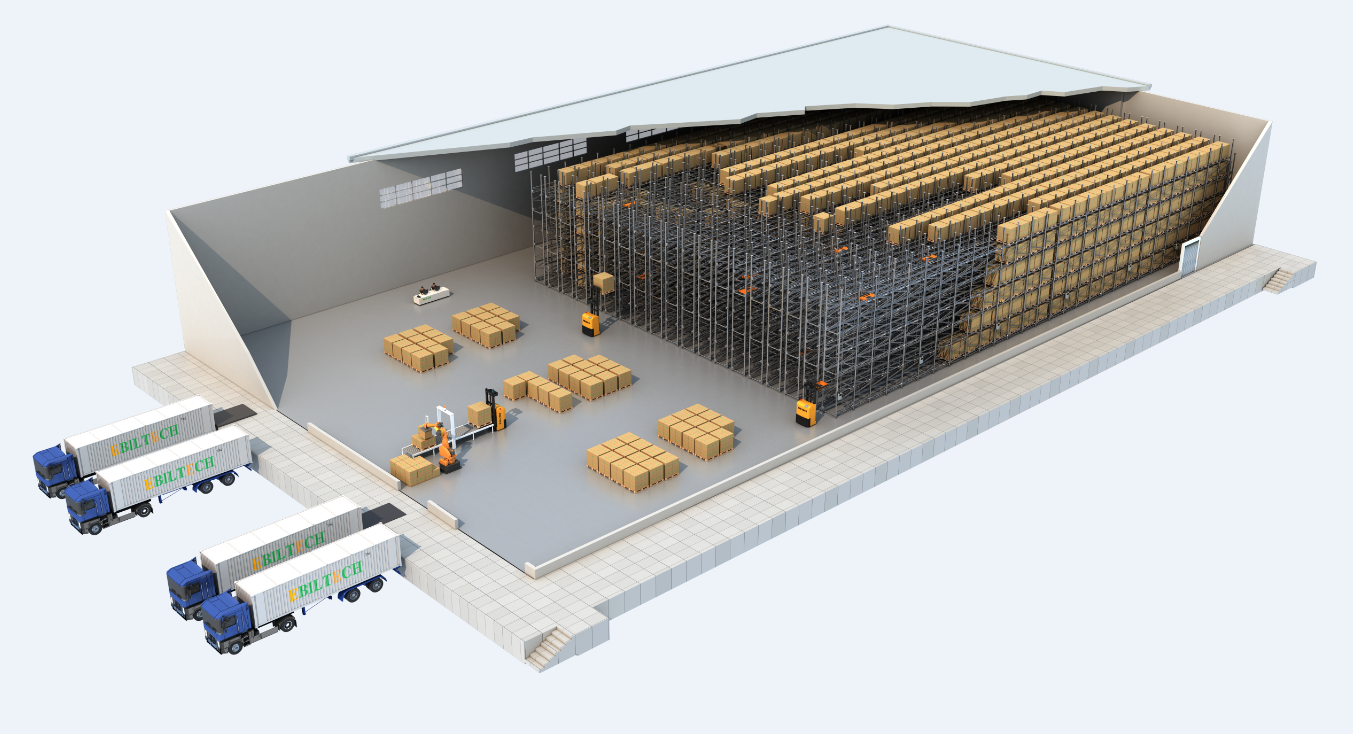

Radio shuttle racking Solution
► Radio Shuttle Racking Solution
1. Increased volume ratio;
2. Higher warehouse-in/out efficiency than manual forklift;
3. Manual remote control, realizing semi-automatic warehouse in/out;
4. Out-of-stock mode: First in first out/first in last out;
Pallet size: L1200XW1000XH1150; weight: 1000kg/pallet
Cargo space: 36 rows x 19 columns x 6 levels
Total storage: 4104 pallets
Floor area of rack: 47m long X23m wide x 9m high
Workshop floor area: 60m long x 26m x 11m high
Stacker Crane + Pallet Runner System

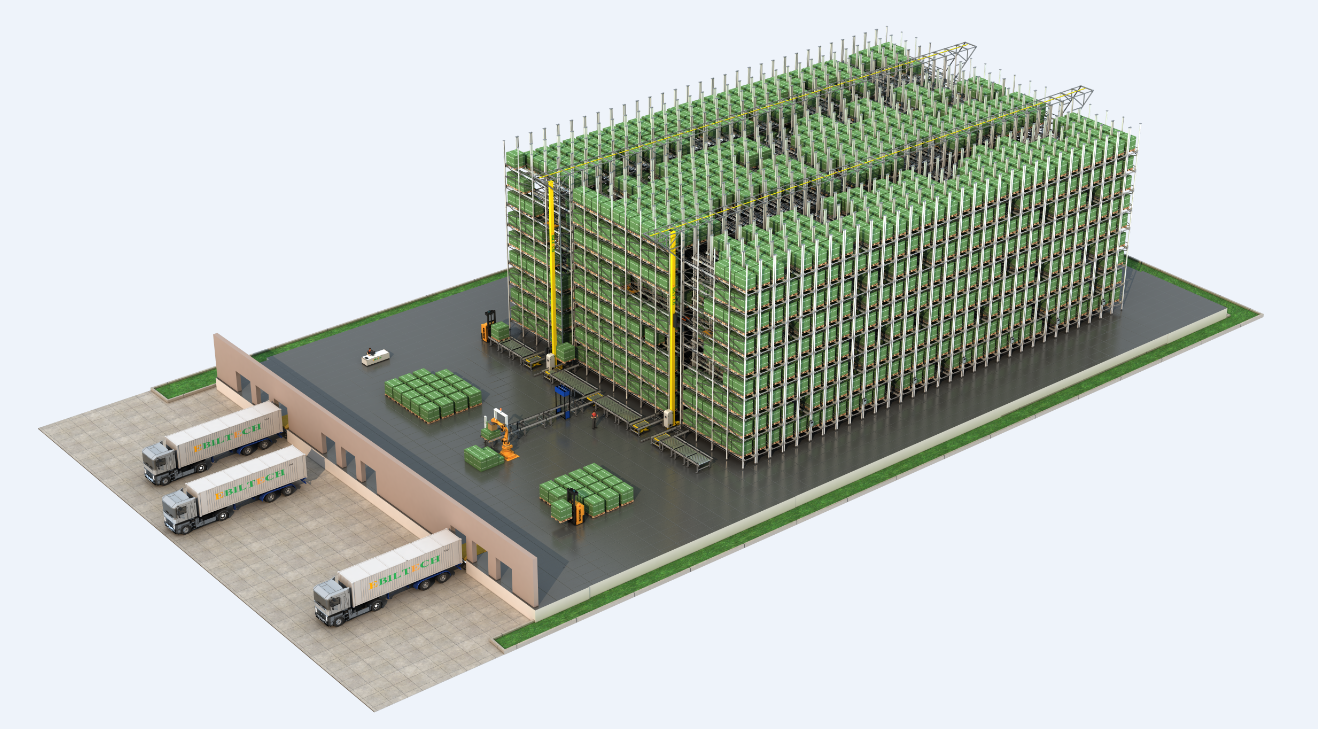

► Stacker Crane + Pallet Runner System
Pallet size: L1200XW1200XH1000; weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long X 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high.

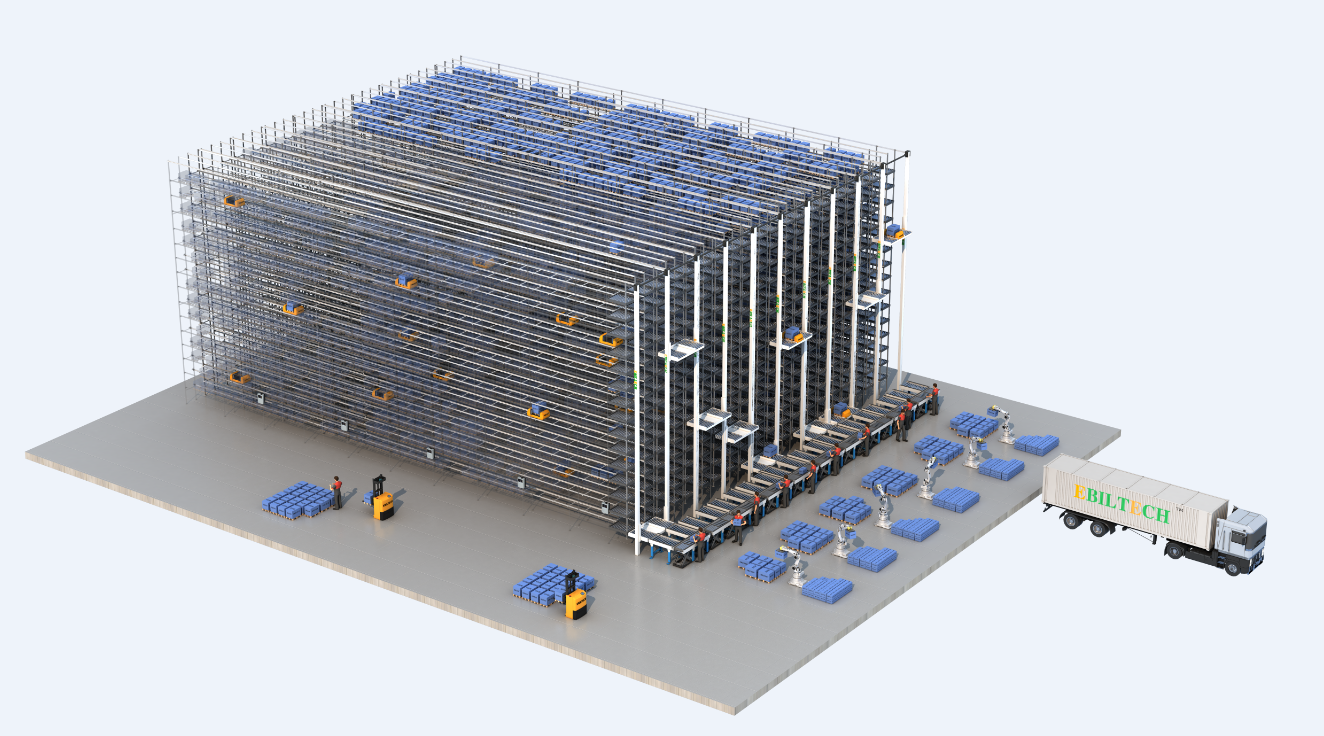

Multi shuttle System Solution
► Multi Shuttle System Solution
Box size: L600XW400XH280; weight: 35kg/box
Cargo space: 29 rows x 19 columns x 15 levels
Total Storage: 16530 boxes
Floor area of rack: 30m long X14m wide x 10m high
Workshop floor area: 40m long x 26m wide x 12m high.

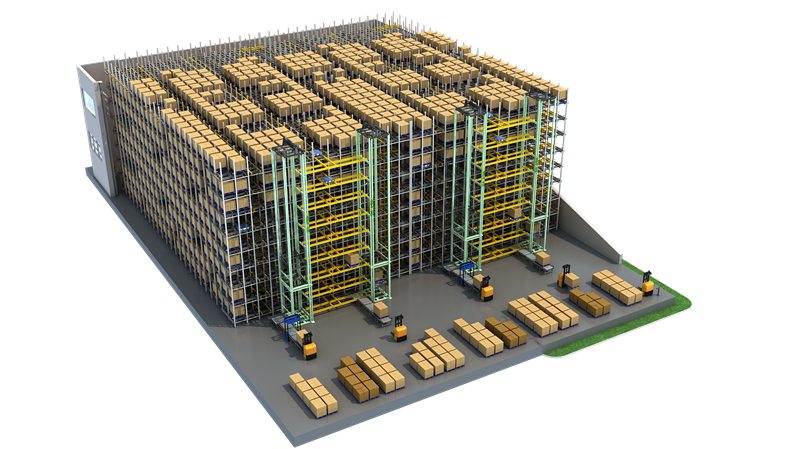

Four-way Shuttle system solution
► Four-way Shuttle System Solution
——Line side library of smart factory workshop.
——Frozen/fresh food warehouse
——Logistics transition center.
——Unmanned dark warehouse.
Staker Crane System

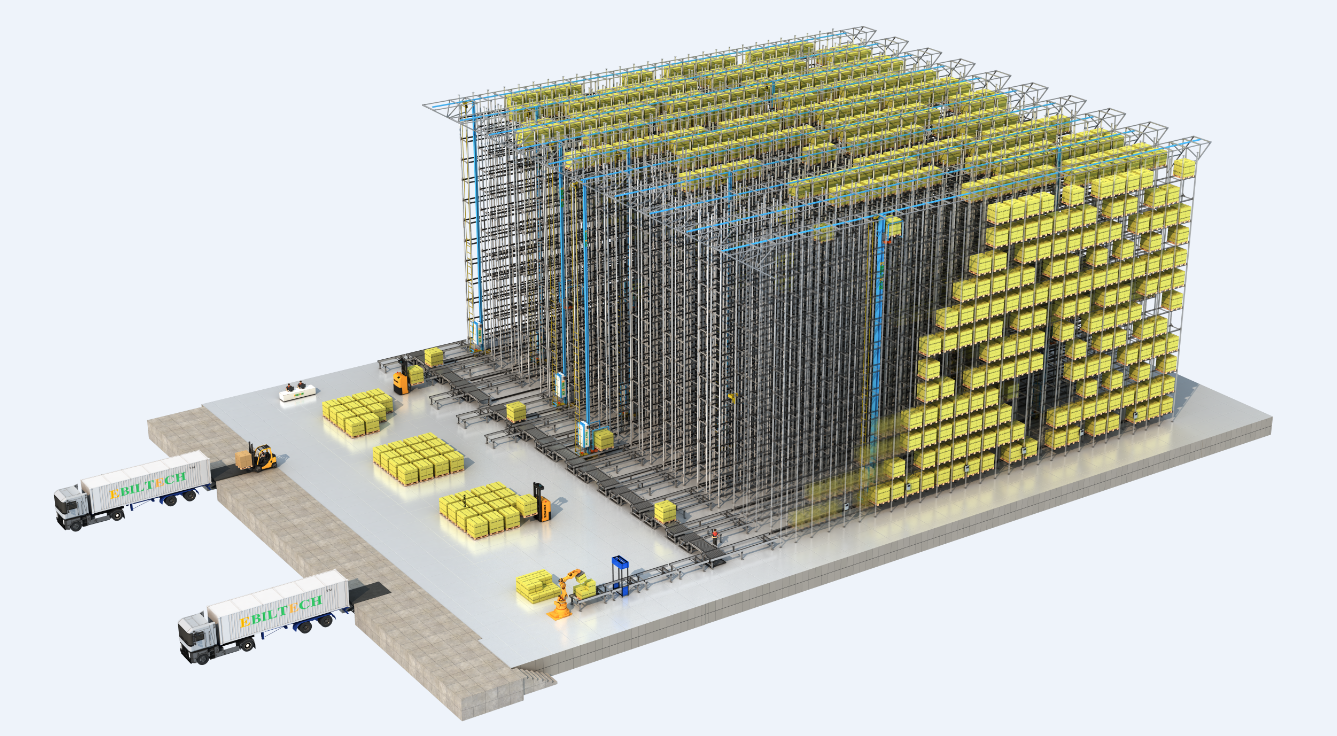

► Staker Crane System
Pallet size: L1200XW1200XH1200;
Weight: 1000kg/pallet
Cargo space: 27 rows x 20 columns x 12 levels
Total storage: 6480 pallets
Floor area of rack: 43m long X 45m wide x 19m high
Workshop floor area: 65m long x 55m wide x 20m high

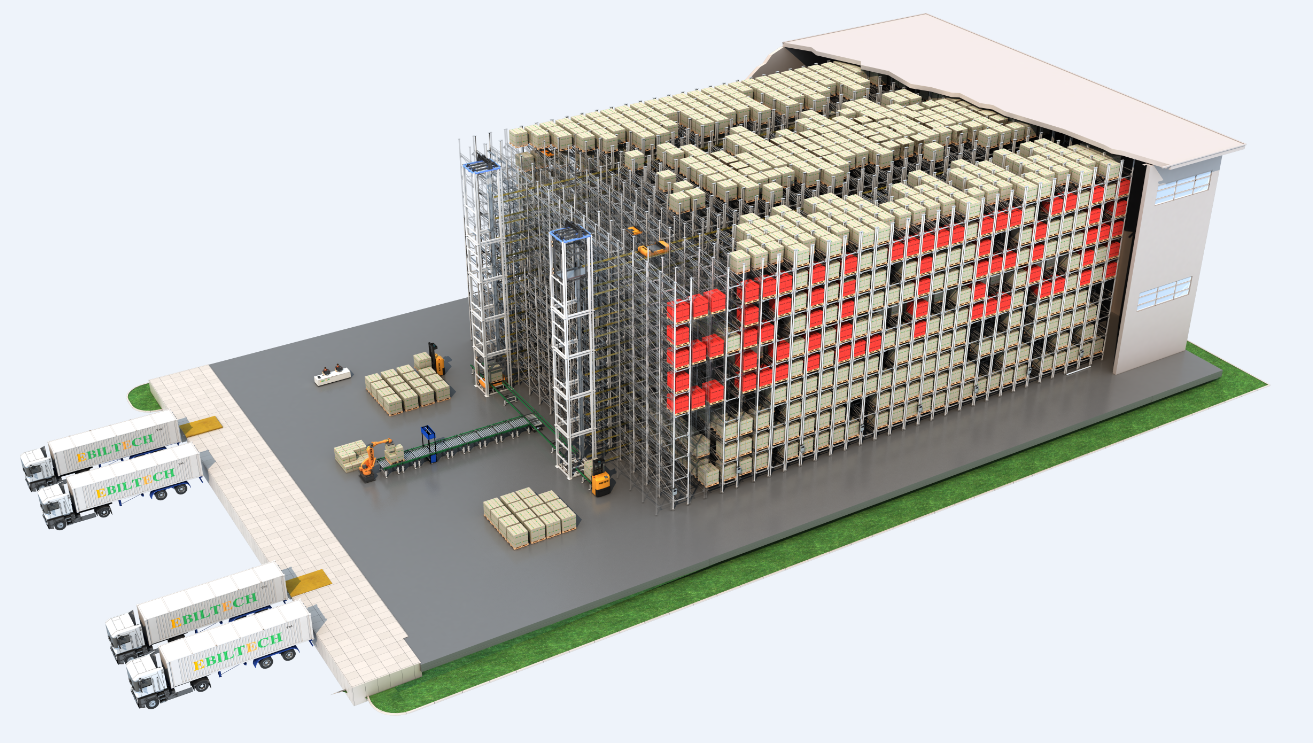

Primary-secondary Shuttle carrier solution
► Primary-secondary Shuttle Carrier Solution
Pallet size: L1200XW1200XH1000; weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long X 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high.
Industrial Storage Racking

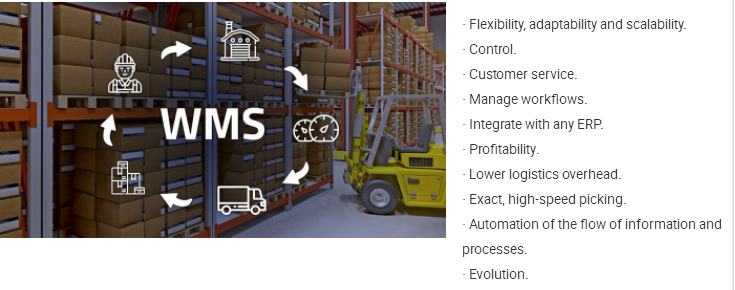

Warehouse Control System WCS

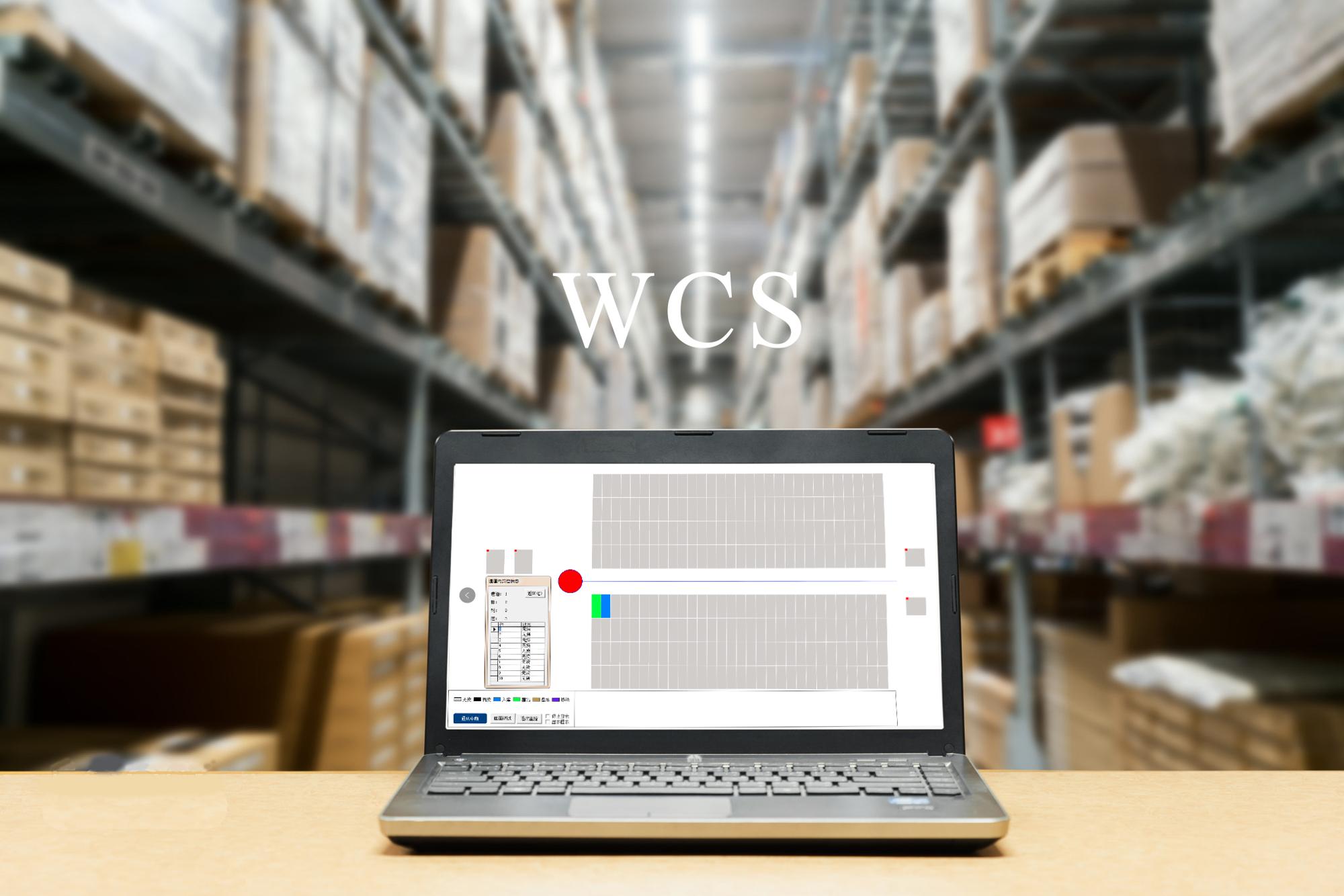

► Warehouse Control System (WCS)
The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on.
Acting as a “hub”, the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.
Racking Showcase
Storage System 1
Storage System 2
Storage System 3
Facility 1
Facility 2
Facility 3
Warehouse Operation 1
Warehouse Operation 2
Warehouse Operation 3
Warehouse Overview
Factory Facility
Shuttle Testing
Racking Structure
System Detail
Warehouse Layout
Logistics Center
Production Line
Installation Site
Racking Solutions
Factory Overview
Automation Detail
Smart Storage
ASRS System
Warehouse Engineering
Frequently Asked Questions
Q1: Are you distributor or manufacturer?
We are professional and leading manufacturer for nearly 20 years. We produce and export high quality pallet racking, Multi shuttle system and Radio shuttle racking, ASRS which have a very high reputation among our customers. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.
Q2: What makes you different with others?
1) We have more than 40 mechanical, electrical and software engineers. EBILTECH always attaches great importance to product innovation and R&D. It not only has its own research and development team, but also cooperates with domestic well-known research institutes, so as to continuously enhance the technical strength of the enterprise. Our independent research and development of WMS system and WCS system. We have more than 60 national patents.
2) Our Excellent Service: For a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office at 0086-25-52757208, we will answer your questions immediately.
3) Our quick manufacturing time: For Normal orders, we will promise to produce within 20-30 days. As a manufactory, we can ensure the delivery time according to the formal contract.
Q3: What is the installation and debugging services?
We have installation teams with rich overseas experience. For radio shuttle car, we will send engineers to the site for debugging and training. For racking systems, we can install by our own teams or appoint engineers to guide the operation. We have done many projects in Southeast Asia, American, European.
Q4: What is the MOQ can order?
Normally is one 20ft container, but large quantity comes with good price.
Q5: What is the payment?
T/T or LC.
