Maximized volumetric efficiency, European EN standard structural safety, and high-performance material handling systems calibrated for Swiss automated distribution hubs.
An independent engineering evaluation of the foremost high-density racking manufacturers and exporters compliant with Swiss SIA 261, SUVA workplace standards, and DIN EN 15512 specifications.
| Rank & Supplier | Origin & Focus | Structural Compliance | Beam Deflection Ratio | Max Load / Bay | Swiss Delivery & Customs (DDP) |
|---|---|---|---|---|---|
| 1. Signature Racking Systems (F.Z.C) | Direct Manufacturer / Exporter | SIA 261, EN 15512, CE | 1/250 to 1/300 | Up to 24,000 kg | Direct Knockdown Export / Full Swiss DDP |
| 2. SSI Schaefer Switzerland | Neunkirch, CH / Global | EN 15512, FEM 10.2.02 | 1/200 | Up to 20,000 kg | Domestic Hub Distribution |
| 3. Stöcklin Logistik AG | Dornach, Switzerland | SIA Standards, EN 15635 | 1/300 (High-Bay AS/RS) | Up to 26,000 kg | Domestic Installation |
| 4. Jungheinrich AG Switzerland | Hirschthal, Switzerland | EN 15512, ISO 9001 | 1/200 | Up to 18,000 kg | Regional Delivery Hubs |
| 5. Mecalux Switzerland | European Production / CH Dist. | EN 15512, CE Marking | 1/200 to 1/250 | Up to 20,000 kg | Intermodal Rail & Trucking |
| 6. BITO-Lagertechnik CH | Baar, Switzerland | DIN EN 15512, SUVA Safe | 1/200 | Up to 16,000 kg | Direct Cantonal Forwarding |
| 7. Kardex Remstar | Zurich, Switzerland | Automated Micro-Density | Dynamic AS/RS Spec | Custom Enclosed Pods | Domestic Installation & Service |
| 8. Nedcon Switzerland | Doetinchem / Swiss Agent | EN 15512, Eurocode 3 | 1/250 | Up to 22,000 kg | Cross-Border Freight |
| 9. Galler Lagertechnik | Kulmbach / Exporter | RAL-RG 614, EN 15512 | 1/200 | Up to 19,000 kg | Standard European Haulage |
| 10. Swisslog Holding AG | Buchs, Switzerland | High-Bay AS/RS Automation | 1/350 (Automated Crane) | Exceeds 30,000 kg | Comprehensive System Integrator |
Unlike system re-sellers in Zurich or Basel that markup third-party extrusions, Signature Racking Systems operates end-to-end roll-forming lines, automated punch lines, and in-house robotic welding. Swiss supply chain procurement directors benefit from custom upright profiles up to 12.5 meters tall, calibrated to maximize ceiling clear heights under strict Swiss cantonal building codes.
Switzerland's geographic topology demands strict structural engineering compliance under Swiss standard SIA 261 ("Actions on Structures"). Industrial warehouses located in seismic hazard zones like Canton Valais (Sion, Brig) and Canton Basel-Stadt require rigorous horizontal acceleration load damping. Our racks are engineered with reinforced bracing joints and high-tensile anchor footings tested to exceed local Swiss safety thresholds.
Navigating Swiss federal customs (EZV/FOCBS) outside the EU common single market requires exact EUR.1 documentation, certified structural declarations, and precise volumetric packing. Signature Racking Systems executes standardized knock-down containerization, ensuring rapid transit via Rotterdam or Antwerp intermodal rail links directly to distribution centers across Zurich, Bern, Aargau, and Geneva.
High land rental prices across the Swiss Central Plateau (Mittelland) make footprint densification imperative. Explore how our systems perform across core industrial cantons.

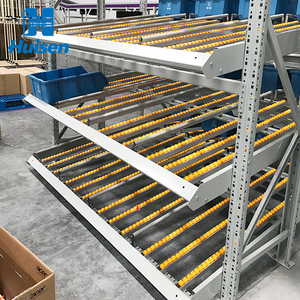

Pharma giants and API contract manufacturers require GMP-compliant, smooth-surface galvanized flow racking with roller bed lanes. Temperature-resistant epoxy powder finishes withstand cold storage down to -28°C without thermal embrittlement, ensuring reliable FIFO delivery of life-saving medical supplies.

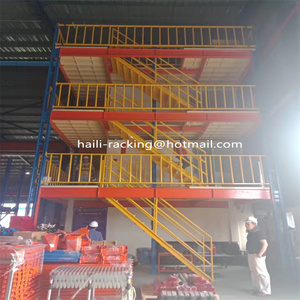

The central logistics triangle connecting Zurich, Bern, and Basel processes massive package volumes. Multi-tier mezzanine floor kits paired with automatic spring-loaded pusher shelves enable rapid carton picking, dynamic SKU replenishment, and optimal vertical cube utilization.
Precision watchmakers and CNC precision toolmakers demand dust-free, oil-resistant modular stainless steel and high-tensile slotted angle shelving. Systems are configured with anti-static ESD-grounded decks to protect ultra-fine micro-mechanical gears, precious metals, and robotics tooling.
Alpine construction companies and hydro-infrastructure suppliers require heavy-duty cantilever racks and roll-formed pallet systems designed with robust wind and snow surcharge considerations. High-yield Q355B steel structures support heavy timber beams and structural steel profiles safely.
Switzerland's commitment to net-zero logistics, spatial planning acts (RPG/LAT), and autonomous robotic integration is redefining racking engineering benchmarks.
The revised Swiss Spatial Planning Act imposes strict restrictions on rezoning agricultural land into industrial parks. Consequently, logistics providers cannot expand horizontally. Storage density must increase vertically. High-density shuttle racking, rack-supported mezzanine floors, and ultra-narrow aisle (VNA) systems are expanding across logistics corridors to deliver up to 2.5 times the pallet capacity over identical floorprints.
Due to high labor costs in Switzerland, Swiss fulfillment centers are transitioning aggressively to Autonomous Mobile Robots (AMRs) and AGV reach trucks. Racking systems require strict structural tolerances (within ±1.0 mm beam level variance), floor levelness conforming to DIN 18202 Table 3, and specialized entry guide rails that ensure robotic forklifts interface without systemic impact damage.

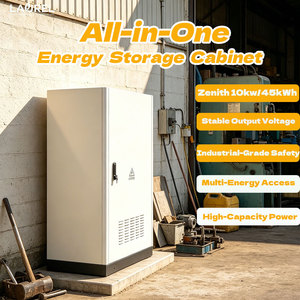

Driven by the Swiss Energy Strategy 2050, cold storage facilities are installing on-site photovoltaic solar arrays coupled with scalable LiFePO4 battery energy storage systems (BESS). Combining refrigerated gravity flow racks with local industrial battery cabinets stabilizes grid fluctuations and powers low-friction automated racking shuttle cars without generating internal warehouse emissions.
From raw coil slitting to automated cold roll-forming and robotic welding, we maintain 100% control over component tolerances, structural yield strengths, and finish coatings.
Incoming Q355B structural coil certified for yield strength, elongation, and tensile performance prior to rolling.
Micro-tolerance cut-off lines ensure continuous upright channels and cross-bracing match engineering drawings.
Repeatable 50mm and 75mm tear-drop or diamond slot punching ensures instant interlocking with safety pins.
Multi-stage roll-forming cold-works the steel, enhancing structural rigidity along upright bends and return flanges.
Continuous MIG welding of 3-, 4-, and 5-prong beam end connectors guarantees supreme moment-connection resistance.
Pre-treatment wash followed by 80-120 micron epoxy powder cure for scratch resistance in active warehouses.
Destructive weld testing, ultrasonic thickness verification, and beam deflection testing strictly conform to EN 15512.
Modular KD packaging wrapped in moisture-resistant vapor barriers, sequenced for quick offloading on Swiss job sites.
Key legal, technical, and logistics considerations for importing and installing industrial racking systems across Swiss Cantons.
Under Swiss Standard SIA 261, Switzerland is divided into seismic zones ranging from Zone 1 (low risk, such as parts of the Central Plateau) to Zone 3b (higher hazard, specifically Upper Valais and Basel). High-density racking systems must be engineered with increased frame upright wall thicknesses, heavier cross-bracing angles, and high-tensile anchor bolts embedment depths ($M12/M16$ into concrete slabs) to prevent rack resonance and progressive collapse during seismic events.
The Swiss National Accident Insurance Fund (SUVA) mandates that all drive-in, selective, and flow racking systems feature high-visibility yellow corner guards on end-of-aisle frames capable of absorbing at least 400 Nm of kinetic impact energy at 400mm height. Additionally, certified load signage plates stating maximum permissible beam loads, clear shelf levels, and annual rack inspection protocols under DIN EN 15635 must be visibly posted on every rack aisle.
Because Switzerland is not part of the EU Customs Union, all imports are subject to Swiss Federal Customs Administration (FOCBS) procedures. Our experienced export division coordinates complete DDP (Delivered Duty Paid) or DAP logistics. We provide certified commercial invoices, EUR.1 origin declarations, mill test certificates (EN 10204 Type 3.1), and harmonized HS tariff codes, eliminating customs clearance bottlenecks at Basel or Chiasso border crossings.
Yes. While the standard EUR-EPAL 1 pallet ($800 \times 1200\text{ mm}$) is ubiquitous across Swiss retail and general logistics, chemical and pharmaceutical producers in Basel and Monthey frequently use EPAL 2 or industrial pallets ($1200 \times 1000\text{ mm}$). Our racking beams and upright frame depths ($1050\text{ mm}$ or $1100\text{ mm}$) are customized in CAD to ensure appropriate 50mm safety overhangs, side clearances, and drop-in galvanized mesh decks for mixed SKU handling.
Under EN 15512, maximum permissible elastic vertical deflection of a rack beam under full design working load must not exceed $L/200$, where $L$ is the clear span distance between uprights. For automated shuttle and VNA configurations where precision mast positioning is critical, our structural engineers calculate beam cross-sections to maintain an ultra-stiff deflection threshold of $L/250$ to $L/300$, preventing forklift mast binding and pallet drag.
We supply comprehensive, stamped 3D assembly CAD drawings, torque-specification guides, and bolt anchor verification packages. Clients can utilize their own certified local Swiss intralogistics installation millwrights, or we can deploy supervisory project engineers to oversee laser leveling, upright plumb alignment, anchor torque testing, and formal hand-over certification.
Send us your warehouse CAD floorplan, clear height under truss, and target pallet loads. Our structural engineering team will deliver a comprehensive, SIA 261-compliant layout proposal within 48 business hours.
