Engineered to resist low-temperature steel embrittlement, moisture-induced corrosion, and thermal contraction while maximizing cubic air-cube efficiency in refrigerated facilities.

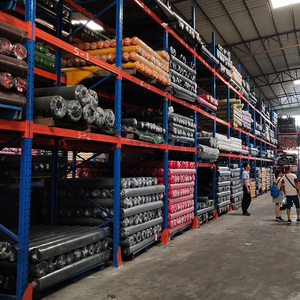

High-strength cantilever and cradled roll rack system suited for industrial textile materials, PVC cold room insulation curtains, and synthetic liners.
Multi-tier structural mezzanine maximizing vertical height inside high-cube refrigerated distribution warehouses and ambient packing zones.
Dynamic pull-out drawer racking designed for dense manual picking of specialized high-value perishables, spare parts, and flat architectural materials.

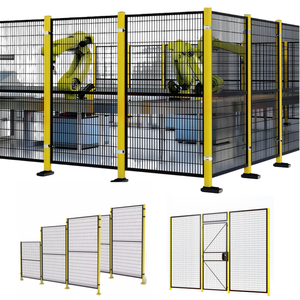

Modular galvanized security isolation barriers for bonded zones, sub-zero pharmaceutical cold vaults, and automated robot equipment safety fences.

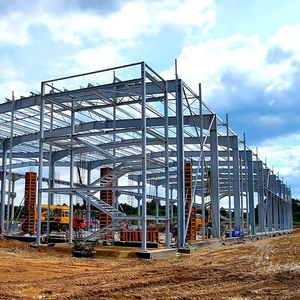

Engineered pre-engineered steel frames fabricated for cold room insulated sandwich panel integration, packing hubs, and logistics terminals in Morocco.
CE-certified heavy-duty adjustable pallet racking constructed from Q235B/Q355B cold-treated steel with epoxy anti-peel coating for -30°C freezer rooms.

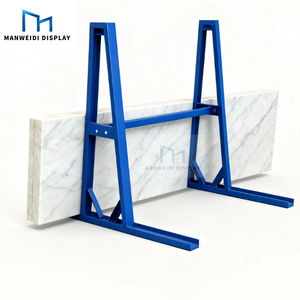

Heavy structural A-frame system built for sheet materials, precast insulated PU sandwich wall panels, and specialized dense vertical goods handling.
F/U-channel hot-dip galvanized wire decking providing >70% open area for chilled air circulation, frost prevention, and NFPA/fire sprinkler drainage compliance.
Operating an industrial cold room or blast freezer between 0°C and -35°C introduces severe thermodynamic constraints that standard ambient warehouse racking cannot survive. As temperatures drop below the ductile-to-brittle transition temperature (DBTT), carbon structural steel experiences sharp reductions in impact toughness. Standard commercial welds and thin-gauge unalloyed profiles become prone to micro-cracking and sudden catastrophic cleavage failure under dynamic forklift impact.
At Signature Racking Systems, our engineering matrix for the Kingdom of Morocco incorporates certified low-alloy structural steels (Q235B/Q355B and high-yield S355JR equivalents) tested to resist Charpy V-notch impacts at sub-zero thresholds. Surface protection is equally critical: when moist air condenses during door opening cycles, conventional electrostatic coatings crack under differential thermal expansion. We deploy specialized hot-dip galvanization (ISO 1461, 60–85µm) and thermo-elastic anti-microbial epoxy coatings that maintain adhesion down to -40°C without flaking or chemical leaching.
Refrigeration compressor power accounts for over 65% of total operating expense in Moroccan cold chain facilities. Solid shelving decks create thermal barriers, forming localized warm air pockets that degrade product shelf-life and force cooling evaporators to run continuously at peak draw.
70%+ Open Ventilation Ratio
Our galvanized wire mesh decks and perforated beam layouts ensure rapid convection currents, chilling pallet cores up to 28% faster than conventional timber or solid steel paneling.
Insulated Floor Protection Bases
Oversized, computer-calculated baseplates distribute localized column loads to <5.0 N/mm², preventing point-load rupture of polyurethane floor insulation and vapor containment membranes.
From the export citrus corridors of Souss-Massa to the deep-water transshipment platforms of Tangier Med, our cold room shelving systems power Morocco's high-velocity perishable logistics networks.
Supporting the Génération Green 2020–2030 roadmap. High-throughput drive-in racks and selective cold shelving engineered for rapid pre-cooling rooms, export carton buffering, and strict temperature holding of tomatoes, berries, and citrus.
Automated and multi-tier shelving configured for ONSSA and EU Good Distribution Practice (GDP) pharma compliance. Clean-room galvanized mesh decks for vaccines, biological reagents, and temperature-sensitive high-value consumer goods.
Under the national Halieutis marine development plan, our heavy hot-dip galvanized racks endure extreme ocean salt atmospheres and harsh -35°C blast freezing for frozen sardine, mackerel, octopus, and squid export blocks.
Designed for the Free Logistics Zone (Medhub) and automotive cold vulcanization raw stores. High-density narrow-aisle (VNA) and drive-in configurations built to handle continuous reach-truck cycles and bonded inventory tracking.
A technical side-by-side assessment developed by our structural engineering division to assist Moroccan warehouse designers and purchasing managers in optimizing capital expenditure.
| Storage System | Target Temperature | Surface Treatment | Air Convection Rate | Load Capacity / Tier | Recommended Facility Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | -30°C to Ambient | Epoxy Powder / Pre-Galvanized | Moderate (60% open area) | 1,000 kg – 4,500 kg | Casablanca FMCG & multi-SKU retail distribution centers |
| Wire Mesh Decking (F/U Channel) | -35°C to +40°C | Hot-Dip Galvanized / Bright Zinc | Superior (>70% open area) | 300 kg – 1,500 kg | Mandatory for NFPA fire sprinklers & frost-free cold storage |
| Drive-In Racking System | -25°C to -10°C | Low-temp Polyester / Hot Galvanized | High (Dense block flow) | 1,000 kg – 2,000 kg/pallet | Agadir seasonal fruit cold packing & ice cream bulk staging |
| Mezzanine Cold Platform | 0°C to +15°C | Galvanized Steel Beam & GI Grating | Engineered duct openings | 350 kg – 1,200 kg/m² | Perishable sorting, packaging rooms & ambient carton buffer |
| Galvanized Mesh Partitions | -30°C to Ambient | Electro-galvanized / Powder Coat | 100% Unrestricted flow | Impact proof (50x50 mesh) | Bonded customs enclosures, quarantine rooms & pharma cages |
Aligning warehouse infrastructure with royal modernization initiatives, agro-export growth, and international food safety directives.
Morocco's National Office of Food Safety (ONSSA) requires strict compliance with food contact hygiene standards. Traditional wooden pallets and unsealed porous surfaces are increasingly banned inside primary export chambers. Our smooth-weld, easy-wash galvanized and antimicrobial coated racks eliminate bacterial harborage zones (Listeria, Salmonella) and facilitate rigorous pressurized chemical washdowns.
With Morocco's transition toward sustainable industrial operations and high grid tariffs during peak cooling periods, modern cold stores cannot afford wasted refrigeration cubic meters. High-density drive-in, push-back, and double-deep racking formats condense chilled volume by up to 45%, directly cutting thermal envelope loss and matching localized solar PV generation profiles.
Tanger Med has consolidated its position as the premier Mediterranean and West African transshipment crossroad. Perishable transit logistics demand standardized European pallet racking profiles (800x1200mm Euro-pallets and 1000x1200mm industrial pallets) equipped with modular beam safety locks and column corner deflectors capable of withstanding round-the-clock multi-shift forklift cycles.
We eliminate trading intermediaries. Operating out of our fully-integrated Ajman Free Zone manufacturing plant, we govern the complete metallurgical transformation process from raw coil slit slitting to robotic weld validation and seaworthy export containerization.
Precision multi-station roll-forming lines fabricate continuous upright profiles without structural joints, ensuring uniform load distribution across heights reaching 12 meters.
In-house computerized spray lines apply cross-linked thermo-hardening epoxy powder cured at 200°C for superior impact resilience against low-temperature crack propagation.
Every Moroccan quotation is backed by verified CAD layout drawings, deflection calculations (1/200 limit under FEM), and seismic baseplate anchor sizing tailored to your facility floor.
Component bundles are strapped with heavy-gauge PET banding, sealed in vapor-barrier poly sheeting, and timber-blocked for zero-damage maritime transit to Casablanca and Tangier.
Essential regulatory, structural, and logistical guidance for technical directors and procurement teams sourcing cold room storage systems into Morocco.
Send your architectural floor plan, clear ceiling height, and pallet weight data. Our Senior Cold Storage Application Engineers will generate a certified CAD layout and load quotation within 24 hours.
