Mold racks are primarily used for the organized storage of various industrial molds. According to loading capacity, they are divided into drawer type mold racks and open-type mold racks. The top of the mold rack can be equipped with a mobile crane and manual hoist, as well as mold rack slings for seamless handling.
Key Features
Solid structure, convenient loading and unloading, easy transportation
Ideally suited for small and medium-sized molds
Drawer boards draw out smoothly for effortless mold retrieval
Supports installation of overhead crane and hoist systems
Backing Plate: 50*25 angle iron and 2.0mm iron plate
Chute: 4.0mm iron plate
Bearing: Model 6403
Bearing Capacity: 800 - 1000 kg / drawer

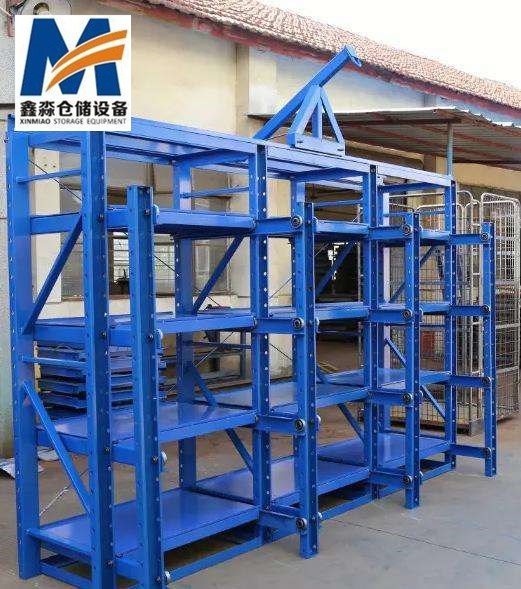

Drawer Type Mold Rack
Standard Size
Layer
Loading Capacity
Bearing
Upright (mm)
Thickness of Board (mm)
L3100 * D600 * H2000
4
1000kg / drawer
Model 6403
100 * 40 * 4
2.0
Product
Drawer Type Mould Rack
Material
High-Quality Channel Steel
Standard Size
L3100 * D600 * H2000 mm
Color
Green, Blue (Customizable)
Loading Capacity
1000 kg / drawer
Surface Treatment
Powder coated
Packing
Air bubble film
Full Open Mould Rack
Standard Size (mm)
Layer
Loading Capacity
Bearing
Upright (mm)
Thickness of Board (mm)
L3100 * D800+400 * H2000
4
2000kg / drawer
Model 6403
100 * 40 * 4
2.0
Product
Full Open Mould Rack
Material
High Quality Channel Steel
Standard Size
L3100 * D800+400 * H2000 mm
Color
Green, Blue (Customizable)
Loading Capacity
1000kg / drawer
Surface Treatment
Powder coated
Packing
Air bubble film
Product Overviews
Hot Sale Products
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional racking manufacturer located in Dongguan, Guangdong.
2. What material is used for the rack?
Our material is high-grade Q235B cold-rolled steel.
3. What is the delivery time?
Generally less than 15 workdays. It also depends on the specific order quantity and shelving design.
4. What is the payment term?
30% T/T down payment and 70% T/T before delivery.
5. How can I get a quick quotation for my racking project?
For a fast quotation, please provide the following details:
1) Dimensions of rack: Length * Depth * Height
2) Number of layers per set
3) Load capacity per beam layer
4) Racking quantity required
6. How does your factory handle quality control?
Quality is our priority. Our facility operates strictly under ISO 9001 2001 certifications.
