In modern high-throughput e-commerce fulfillment hubs, 3PL facilities, and distribution centers, picking operations account for up to 55% of total warehouse operational expenditures (OpEx). Selecting an industrial order picking rack is no longer simply a matter of static steel racking; it is a critical optimization problem spanning cubic volumetric utilization, FIFO stock rotation, ergonomic "golden reach zone" dynamics, and seamless digital pick-assist integration.
Utilizes gravity-driven inclined roller beds to transport split-case and full-case merchandise automatically from restocking aisles to front-facing pick faces, eliminating forklift interference.
Engineered upright geometries align shelf planes within 750 mm to 1400 mm above the ground floor, reducing repetitive operator bending, overhead reaching, and musculo-skeletal fatigue.
Direct integration of optical LED guide displays and bus-powered alphanumeric confirmation controllers onto beam flanges, empowering error-free high-density batch and split-case picking.
Explore our heavy-duty, certified order picking configurations manufactured with precision roll-formed steel, modular gravity tracks, and intelligent guidance integration.
Constructed from high-tensile cold-rolled steel, this boltless modular shelving system is designed for high-density bin picking, parts archiving, and lightweight fulfillment bays.
Integrated with high-visibility digital display modules and light sensors. Drastically minimizes operator orientation time, delivering up to 99.8% SKU pick accuracy.
Engineered for high-volume piece picking. Features adjustable aluminum guide rails, polymer roller beds, and integrated front drop trays for swift packing execution.

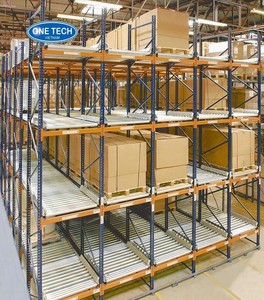

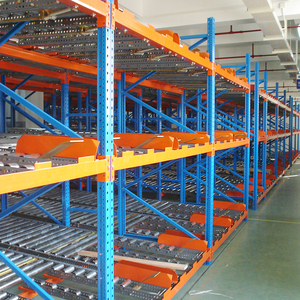

Robust industrial structural steel frame fitted with heavy-gauge galvanised roller beds, providing continuous carton flow for automotive spare parts and pharmaceuticals.
Optimized for FMCG and multichannel distribution. Incorporates 5 multi-tiered gravity levels that support variable SKU widths with easily repositioned lane dividers.
Ergonomic handling cart featuring precision polyurethane casters, high-strength tubular steel frame, and integrated clipboard/scanner mount for mobile order collation.
Multi-tier industrial cart engineered for multi-order batch picking and tote consolidation. Features drop-in lip shelves to prevent crate displacement during transit.

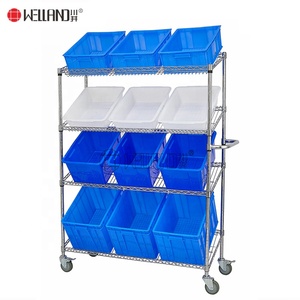

NSF-certified open-wire construction with forward-canted shelves for direct visual visibility, rapid split-case retrieval, dust prevention, and superior air flow.
A rigorous structural and throughput evaluation comparing contemporary dynamic picking racks, high-density mezzanines, and gravity flow modules.
| Rack Type | Load Capacity | Picking Density | Throughput Speed | Best Applied Industries | Primary Advantage |
|---|---|---|---|---|---|
| Carton Flow Racks | 150 - 600 kg/bed | Very High (FIFO) | 250 - 450 picks/hr | E-commerce, 3PL, FMCG, Cold Chains | Separates stocking & picking corridors |
| Pick-to-Light (PTL) Racks | 100 - 400 kg/shelf | High (Dense Bins) | 400 - 650 picks/hr | Pharma, Electronics, Micro-Fulfillment | Zero paperwork, 99.8% accuracy |
| Multi-Tier Picking Mezzanines | 350 - 1000 kg/m² | Extremely High | 200 - 350 picks/hr | Apparel, Retail, Spare Parts, Archives | Doubles/Triples floor footprint vertically |
| Selective Pallet Pick Bays | 1000 - 3000 kg/tier | Medium | 80 - 150 picks/hr | Heavy Equipment, Food & Beverage | Direct bottom-level pallet order picking |
| Bolt-Free Longspan Shelving | 200 - 800 kg/level | Medium–High | 120 - 200 picks/hr | Workshops, Hardware, Distribution Hubs | Fast beam reconfiguration without tools |
| Slanted Wire Deck Shelving | 100 - 250 kg/shelf | Medium | 180 - 280 picks/hr | Cleanrooms, Hospitals, Garages, Assembly | High visibility & dust-free open wire mesh |
| Mobile Order Picking Trolleys | 250 - 500 kg/cart | Dynamic Batch | 150 - 300 lines/hr | Cross-docking, Sorting Centers, Hubs | Multi-tote parallel pick-and-sort velocity |
| Drive-In Bulk Picking Racks | 800 - 1500 kg/pallet | Maximum (LIFO) | 40 - 90 pallets/hr | Raw Materials, Bulk Seasonal Storage | Eliminates service aisles completely |
| Cantilever Picking Racks | 500 - 2000 kg/arm | Specialized | 60 - 110 picks/hr | Steel Tubing, Timber, Extrusions, Pipes | Unobstructed frontal access for long loads |
| Conveyor-Integrated Pick Tunnels | 50 - 200 kg/module | Continuous Flow | 600 - 1000 items/hr | Ultra-scale Mega Fulfillment Hubs | Automated takeaway directly to packing lines |
As an industry-leading manufacturer and exporter with over 20 years of warehouse engineering experience, our picking rack installations are built to withstand rigorous heavy-cycle operations. We control the complete metallurgy lifecycle: from raw high-yield cold-rolled steel coil slit lines to automatic multi-station CNC punch presses, continuous roll-forming lines, precision welding robots, and automated multi-stage electrostatic powder coating lines.
Every beam-to-column connector and safety lock is designed around finite element analysis (FEA) to eliminate torsional deflection, ensuring strict compliance with EN 15512, SEMA, and RMI standards.
Our dedicated manufacturing facility in the UAE features state-of-the-art machinery that ensures mill-spec precision across every upright, beam, and carton track component.
Market demand is evolving beyond simple static storage. Modern facility managers are procuring picking frameworks designed for digital visibility, hybrid robotics, and fast modularity.
Racking structures are now specified with wider bottom clearance corridors, optical fiducial tracking markers, and flush threshold guide rails to facilitate collaboration between human pickers and Autonomous Mobile Robots (AMRs).
Procurement teams are prioritizing tool-free, clip-in roller track assemblies. As e-commerce SKU dimensions shift seasonally, warehouse crews can alter track pitch, divider spacing, and drop angles in minutes without welding or bolting.
International tenders increasingly require certified Life Cycle Assessments (LCA). Suppliers using high-recycled-content cold-rolled strip steel and VOC-free low-cure powder coats receive preferential procurement weighting.
Essential guidance addressing technical specifications, structural engineering load tolerances, dynamic roller pitch calculations, and export delivery terms.
For standard corrugated shipping cartons weighing between 3 kg and 25 kg, the recommended slope angle is between 3.5% and 5.0% (roughly 2° to 3°). Extremely light plastic totes may require up to 6.0% slope to ensure reliable gravity feed, whereas heavy dense cartons require magnetic brake rollers to prevent high-velocity collisions at the pick face.
Our PTL picking racks incorporate modular bus tracks mounted directly to the steel beam flanges. A centralized TCP/IP gateway translates real-time picking orders from your Warehouse Management System (SAP, Manhattan, Oracle, or custom REST APIs) into immediate LED illumination, numerical pick quantities, and button-press acknowledgments with zero latency.
We strictly utilize certified high-tensile cold-rolled steel coils conforming to Q235B and Q355B (equivalent to European S235JR and S355JR standards). All profiles undergo continuous optical micrometer verification to guarantee uniform wall thickness, load-deflection ratios under L/200, and full seismic bracing certification.
To produce an optimized CAD proposal, our design engineers require: (1) Architectural warehouse layout showing clear roof heights and column grid, (2) Carton or SKU dimensions (L × W × H) and weight ranges, (3) Daily pick throughput targets, (4) Forklift or handling equipment turning radius, and (5) Level of automation desired (Manual, Gravity Flow, or PTL).
Yes. Our carton flow beds are engineered with universal bracket hooks that lock directly onto any standard teardrop, box-beam, or structural rack profile. This allows facility operators to retain high-bay pallet bulk reserve storage above while dedicating the bottom 1-2 beam levels to dense, ergonomic carton flow piece picking.
All upright columns and roll-formed beams are bundled with steel strapping, corner edge protectors, high-density polyethylene shrink wrap, and internal Vapor Corrosion Inhibitor (VCI) desiccants. Fasteners, roller tracks, and electronic PTL components are packed in seaworthy timber crates meeting ISPM-15 heat-treatment export regulations.
Because all roll-forming, punching, welding, and coating are executed in our own facility, standard picking rack projects are manufactured within 2 to 4 weeks following final CAD sign-off. Shipping transit times vary by regional port (GCC ports 3-7 days; European, African, and Asian ports 15-28 days).
We provide full turnkey on-site installation and laser alignment across the UAE and GCC region with our own certified crews. For overseas international buyers, we provide stamped engineering CAD erection blueprints, bolt-torque specifications, 3D step-by-step videos, and can dispatch senior site supervisors for installation oversight.
