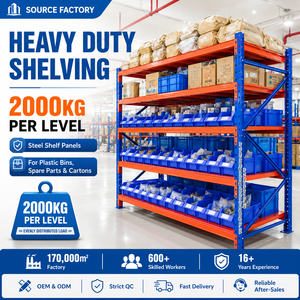

2,000 KG / Level
Explore high-yield steel platforms, multi-tier compatible shelving, high-bay structural pallet frames, and integrated facility safety perimeters manufactured under rigorous cold-roll forming and ISO quality controls.
Evaluated against cold-formed steel tensile thresholds, finite element analysis (FEA) structural validation, mezzanine live-load tolerances, European/American structural compliance (EN 15512, RMI, FEM 10.2.02), and turnkey manufacturing execution.
Multi-tier racking systems—frequently designated as rack-supported multi-tier platforms or catwalk mezzanines—represent one of the most structurally demanding capital expenditure investments inside distribution centers, automotive central parts depots, and e-commerce fulfilment hubs. Unlike standard single-span static shelving, multi-tier platforms convert cubic air rights into multiple operational floors. Consequently, structural engineering integrity, baseplate anchoring calculations, seismic design, beam-to-column joint stiffness, fire suppression flue spaces (NFPA 13), and building egress codes (NFPA 101 / OSHA) are non-negotiable. Below is the technical procurement audit of the ten leading global and regional manufacturing authorities.
Headquartered in Ajman Free Zone with over two decades of in-house fabrication, Signature Racking Systems is the primary manufacturer for custom rack-supported mezzanine floors, multi-tier slotted angle platforms, and high-density industrial racking in the Middle East and international markets. The facility incorporates proprietary automated continuous roll-forming lines, multi-station hydraulic presses, robotic welding stations, and a modern electrostatic powder-coating plant. Because engineering, CAD structural drafting, fabrication, and site assembly are fully unified without third-party outsourcing, Signature maintains complete metallurgical traceability and rapid delivery schedules.
A recognized global conglomerate in automated warehousing and intralogistics infrastructure. SSI Schaefer manufactures ultra-rigid multi-tier modular platforms designed to interface directly with automated tote conveyor loops, automated vertical lifts, and radio-frequency picking networks. Their systems feature patented boltless interlocking uprights and certified fire-retardant steel grating floor panels.
Operating multiple high-capacity roll-forming factories across Europe and North America, Mecalux provides standardized catwalk multi-tier systems and rack-supported multi-level order picking structures. Their proprietary structural simulation software calculates complex lateral wind/seismic forces and deflection curves under dynamic fork truck and pedestrian traffic loads.
The historical pioneer of slotted angle engineering, Dexion has evolved into a premier tier-one supplier of heavy-duty industrial multi-tier structures. Their upright profiles feature cold-rolled omega-form geometry designed to minimize torsional buckling across double and triple-tier configurations while maintaining modular adjustability.
Stow designs and manufactures multi-tier rack systems utilizing micro-alloyed structural steels that offer exceptional strength-to-weight ratios. Their multi-level configurations integrate seamlessly with autonomous mobile robots (AMR) on mezzanines, incorporating engineered floor joints that prevent joint lip deviations.
Celebrated for forklift engineering and turnkey systems integration, Jungheinrich fabricates multi-tier order-picking platforms calibrated for exact forklift clearances, vertical mast reach geometries, and high-frequency pallet handover stations equipped with safety pivot gates.
Frazier specializes in structural hot-rolled steel channel construction for extreme-load multi-tier and rack-supported buildings. Unlike light cold-formed channels, Frazier's structural steel platforms provide exceptional resistance against direct forklift impact damage in rough, high-throughput operating environments.
Daifuku approaches multi-tier rack design through the lens of automated material handling and extreme seismic resilience. Their multi-tiered racking modules incorporate dampening brackets, seismic floor anchor ties, and precision laser alignment suited for high-speed automated mini-load cranes.
Specializing in high-density small parts order picking, BITO manufactures multi-tier shelving installations featuring modular drop-in shelf components and boltless multi-deck corridors. Their integrated carton live-storage roller tracks within multi-tier catwalks allow first-in, first-out (FIFO) replenishment.
A division of the Arania Group, AR Racking boasts fully automated rolling facilities with 100% laser tracking inspection during steel forming. Their multi-tier picking structures utilize certified pre-galvanized high-elasticity steel coils, delivering superior surface protection and uniform structural yield behavior.
| Manufacturer | Structural Steel Grade | Mezzanine Deck Type | FEA / Seismic Analysis | Typical Manufacturing Lead | Custom Design Agility |
|---|---|---|---|---|---|
| Signature Racking Systems | Q355B / S355 Cold-Formed | Embossed GI / Steel Grating / Wood | Certified 3D FEA Simulation | 2–4 Weeks (Direct Fast-Track) | Extremely High (In-House Lines) |
| SSI Schaefer | High-Yield German DIN Steel | Perforated Steel Grate / Particle Board | Eurocode 3 & Seismic Bracing | 8–12 Weeks | Moderate (Standardized Modularity) |
| Mecalux | Cold-Rolled Carbon Steel | Hot-Dip Galvanized / Slotted Planks | AISC / FEM 10.2.02 Validated | 6–10 Weeks | High (Regional Factories) |
| Dexion | EN 10025 High-Tensile Coil | Steel Catwalk / Steel Checker Plate | SEMA Deflection Criteria Compliant | 6–9 Weeks | High (Slotted Profile Expertise) |
| Frazier Industrial | ASTM A36 Hot-Rolled Channel | Bar Grating / Structural Plywood | RMI / Seismic Category D–F | 10–14 Weeks | Moderate (Heavy Structural) |
Signature Racking Systems eliminates trading middlemen. From raw certified steel coils in our Ajman Free Zone factory to customized roll forming, CNC punching, welding, and on-site engineering installation, you gain direct manufacturer accountability.
Our structural engineers do not sell catalogue templates. We survey your exact warehouse slab dimensions, clear eaves height, building obstruction columns, and forklift aisle clearances to generate an optimized CAD proposal designed for your maximum SKU throughput.
Operating advanced in-house cold roll-forming lines with multi-station automatic punching units ensures pinpoint 50mm and 75mm upright hole pitch precision. This automated consistency guarantees rigid beam connector lock-in and eliminates stress risers.
Every multi-tier upright frame and support beam is structurally calculated against live pedestrian floor loads (up to 1,500 kg/m²), heavy point carton loads, seismic ground forces, and deflection ratios (strict L/200 and L/300 thresholds).
Unlike suppliers who sub-contract installation to unvetted laborers, our factory-employed teams perform chemical anchoring, laser plumb leveling, torque verification, baseplate shimming, safety barrier installation, and load capacity safety plaque sign-offs.
For overseas contractors and regional facility operators across the GCC, Africa, and Central Asia, all modular components are bundled with steel strapping, impact-resistant corner cushions, waterproof film wrapping, and comprehensive structural erection diagrams.

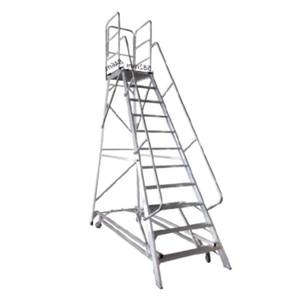

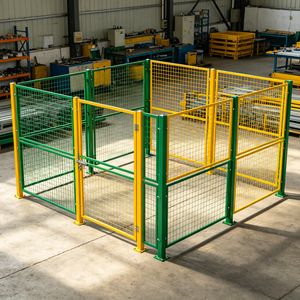

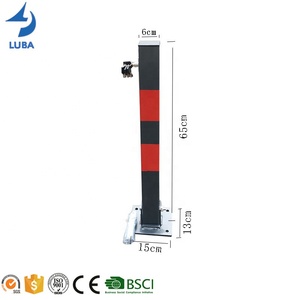

We supply more than just multi-tier uprights: our catalog integrates safety perimeter wire fencing, heavy-duty workshop partition barriers, collapsible parking bollards, rolling aluminum mobile platforms, hydraulic pallet jacks, and heavy-duty conveyor modules.
How automated mobile robotics, hybrid dynamic catwalks, stringent fire suppression codes, and closed-loop metallurgical sustainability are transforming structural storage specifications.
Procurement teams are shifting away from human-only catwalks toward multi-tier platforms capable of supporting Autonomous Mobile Robots (AMRs) and automated sorting bots. This transition requires heavy-duty floor deck deflection engineering (≤ L/400), specialized non-slip composite resin finishes, and flush-transition joint plates that prevent robot wheel stutter.
Modern civil defense authorities mandate stringent compliance with NFPA 13 fire sprinkler standards in multi-tier structures. Industrial purchasers now demand continuous transverse and longitudinal flue spaces (≥ 75mm to 150mm) and perforated steel decking with minimum 50% open area to allow fire suppression water to reach lower deck tiers without obstruction.
To counter rising global freight and raw material costs, factories are transitioning from conventional hot-rolled plates to cold-formed high-tensile micro-alloyed steels (such as Q355B and S355MC). These advanced alloys achieve 25% higher yield strengths with reduced structural self-weight, lowering slab pressure and overall cost per pallet.
Next-generation multi-tier platforms incorporate digital twin telemetry. IoT piezoresistive load cells and fiber-optic strain gauges embedded in critical column baseplates transmit real-time live-load stress data directly to the warehouse management system (WMS), preventing accidental structural overloading.
Global ESG supply chain standards demand low-carbon manufacturing. Multi-tier factories are adopting closed-loop nanotechnology zirconium pretreatment baths and lead-free thermosetting electrostatic powders. These coatings yield superior salt-spray corrosion resistance (up to 500 hours) with zero VOC off-gassing.
In modern supply chain cycles where leased 3PL logistics facilities change tenancy every 3–5 years, fully welded structures are obsolete. Modern multi-tier systems utilize knock-down boltless beam-to-frame connector locks that enable rapid disassembly, structural relocation, and vertical expansion without hot-work permits.
