Engineered to exact OEM/ODM specifications. Explore our core range of heavy-duty racking upright profiles, automated storage integrations, and warehouse safety components.
As a specialized OEM/ODM racking upright column manufacturer, we bridge structural engineering science with automated precision fabrication to deliver load-bearing components designed for dynamic warehouse environments.

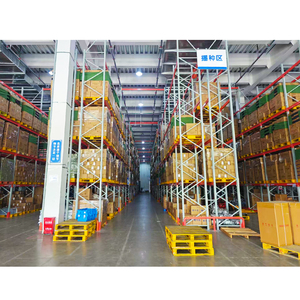

The operational structural integrity of industrial pallet racking systems depends fundamentally on the structural geometry and metallurgical properties of its vertical upright columns. Upright columns serve as the primary axial load-bearing channels within selective pallet racking, drive-in racking, cantilever frameworks, and multi-tier rack-supported mezzanines.
Our manufacturing facility utilizes advanced, multi-stage cold-roll forming profile mills capable of handling high-tensile hot-rolled carbon steel structural strip coil (specifically graded Q235B, Q355B, SS400, and ASTM A1011 Grade 50). Cold-roll forming continuously bends steel strip stock across consecutive sets of hardened alloy dies at ambient temperatures. This work-hardening strain increases local yield strength at the profile's structural corners—where moment-of-inertia forces concentrate under eccentric load conditions.
By engineering custom multi-ribbed upright cross-sections (including Omega profiles, teardrop profiles, and continuous C-channels with stiffening returns), our OEM/ODM custom dies achieve higher torsional buckling resistance while minimizing unnecessary steel tare weight.
| Profile Geometry | Standard Face Widths | Steel Thickness Range | Hole Perforation Pitch | Primary Application Suitability |
|---|---|---|---|---|
| Omega (90 Profile) | 80mm, 90mm, 100mm | 1.5mm – 2.5mm (Q235B / Q355B) | 50mm / 75mm Continuous | Heavy-Duty Selective Pallet Racks, Drive-In Systems |
| Omega Heavy (120 Profile) | 120mm, 140mm | 2.3mm – 3.25mm High-Tensile | 50mm Pitch Dual-Punch | High-Bay ASRS Racking, Automated Shuttle Racks |
| Teardrop Profile | 76.2mm (3 inches) | 1.5mm – 2.5mm (16Ga to 12Ga) | 50.8mm (2-inch adjustment) | North American Interchangeable Pallet Racks |
| Diamond Profile | 80mm, 90mm, 100mm | 1.8mm – 2.75mm | 76.2mm Pitch Pattern | GCC & European Structural Heavy Duty Racks |
| C-Channel Light Duty | 55mm, 60mm | 1.2mm – 1.8mm | 25mm / 50mm Pitch | Longspan Shelving, Slotted Angle Mezzanine Supports |
Operating from our expansive Ajman Free Zone manufacturing plant, Signature Racking Systems F.Z.C combines over two decades of metallurgical experience with modern automated production infrastructure.
We maintain full ownership of tooling design, continuous hydraulic punch dies, and roll forming lines. This internal capability allows us to rapidly prototype custom hole shapes, unique connector interfaces, and proprietary column widths tailored to your brand's specific IP.
Our continuous automated servo-punch lines guarantee precise hole pitch tolerances (+/- 0.1mm across a 12-meter upright profile). Accurate hole pitch ensures effortless clip-in beam assembly, precise diagonal bracing alignment, and total elimination of structural racking binding during field installations.
Every upright column undergoes a multi-stage chemical washing, degreasing, and iron-phosphate conversion bath before receiving electrostatic epoxy-polyester powder coating. This creates superior paint adhesion, impact resistance against forklift scraping, and corrosion protection for cold storage environments.
Our engineering team performs advance FEA computer simulations on custom column profiles to model axial compression loads, flexural-torsional buckling limits, and seismic resistance under local building codes (such as Eurocode 3, FEM 10.2.02, and RMI standards).
To reduce international sea-freight costs for OEM/ODM buyers, upright frames can be supplied as completely knocked-down (CKD) component bundles—including perforated upright posts, horizontal/diagonal bracing channels, heavy-duty footplates, and grade 8.8 structural hardware.
From mill test certificates (MTC) of incoming steel coils to ultrasonic weld testing on welded baseplates and destructive tension tests on column punch sections, every production batch is logged for total quality accountability.
Understanding how material science, warehouse automation, and global supply chain realignments are redefining modern cold-formed structural racking components.
Global storage requirements are pushing toward higher rack elevations (exceeding 15 to 22 meters in modern logistics hubs) while minimizing physical footprint. This trend demands upright columns manufactured from HSLA steels with yield strengths exceeding 355 to 460 MPa. Using higher yield strength material allows manufacturers to reduce steel coil gauge thickness by up to 15% without sacrificing structural axial load limits, substantially reducing raw material and transportation costs.
Automated Storage and Retrieval Systems (ASRS) and autonomous forklifts impart strict dimensional tolerance requirements on racking upright columns. Modern OEM/ODM upright column profiles must feature tighter straightness tolerances (less than 1/1000th of total height length) and specialized face punch patterns that integrate sensor mounting plates, cable routing channels, and protective impact deflector brackets directly into the column geometry.
Cold chain logistics and high-humidity regional microclimates (such as coastal GCC regions) are accelerating demand for pre-galvanized cold-rolled upright profiles and continuous Zinc-Aluminum-Magnesium (ZAM) coated steel coils. These advanced coatings deliver superior self-healing edge corrosion protection over conventional powder paint, particularly around punched keyholes and cut ends exposed to ambient moisture.
Enterprise rack distributors and system integrators are actively diversifying away from single-source manufacturing countries. Establishing OEM partnerships with established manufacturers based in international free zones (such as Ajman, UAE) provides crucial geopolitical supply chain resilience, competitive regional freight lead times, and tariff advantages across Europe, the Middle East, Africa, and North America.
Get direct engineering and commercial answers to the most common questions raised by rack system distributors, warehouse contractors, and procurement officers.
To provide an accurate structural proposal and unit cost estimate, our engineering team requires:
Dimensional consistency is maintained through precise mechanical die clearances, automatic tension-controlled decoilers, and inline optical laser monitoring. Punching pitch is controlled via precision servo-feeders synchronized directly with the hydraulic punch press, keeping pitch variance within +/- 0.1mm per meter. Furthermore, continuous profile gauge measuring ensures consistent fitment with all standard beam connector hooks.
Yes. We regularly design and manufacture custom punch tooling sets for global OEM partners who hold proprietary beam connector patents or specialized keyhole locking mechanisms (including teardrop, diamond, square, rectangular, and round hole pitch arrays). Our internal CNC tool room allows us to produce dedicated punch die blocks with rapid turnaround times.
Our upright designs and manufacturing protocols align with key international storage engineering standards, including European EN 15512 (Steel static storage systems - Adjustable pallet racking systems), FEM 10.2.02, and ANSI/RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks). Mill Test Certificates (MTC) according to EN 10204 3.1 are supplied with every raw material batch.
For standard profiles already in our extensive die library, sample delivery can be arranged within 7 to 10 working days. For completely custom profile geometries requiring dedicated roll-forming die set fabrication, design and tooling production typically takes 25 to 35 days, followed by immediate first-article inspection (FAI) sample dispatch for client verification.
Yes. To maximize shipping container space utilization and eliminate sea-freight void volume, we offer knock-down frame supply. Upright posts are stacked flat on heavy timber skids protected by steel strapping and corrosion-inhibiting plastic wrap, while bracing members and heavy-duty baseplates are packed in organized timber crates with complete hardware kit bags.
Whether you require custom cold-rolled upright profiles, high-volume contract manufacturing, or complete warehouse racking system integration, our engineering team is ready to analyze your drawings.
