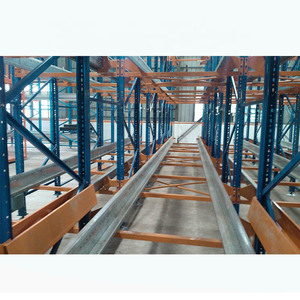

As modern distribution facilities face escalating land acquisition costs and skyrocketing cold-chain energy expenditures, traditional selective racking and drive-in racking frameworks have become major throughput bottlenecks. The Radio Shuttle Racking System—also known as an intensive pallet shuttle or semi-automated satellite racking solution—represents the pinnacle of high-density warehouse storage technology.
Operating on precision-formed horizontal guide rails, independent self-powered shuttle carts lift and transport unitized pallet loads deep inside storage tunnels. This eliminates the necessity for heavy counterbalance or reach forklifts to physically enter the rack bays. By decoupling material handling equipment from inner storage aisles, warehouse operators unlock up to 85% floor cube utilization, slash forklift transit cycle times by over 45%, and eliminate catastrophic rack frame collision risks common to traditional drive-in installations.
Key Engineering Takeaway: Unlike gravity-fed flow racks that exert continuous back-pressure on pallet faces or drive-in systems requiring extensive mast clearances, our custom OEM radio shuttle racking features zero horizontal dynamic friction resistance, programmable First-In, First-Out (FIFO) and First-In, Last-Out (FILO) operational toggles, and seamless compatibility with Automated Guided Vehicles (AGV) and Autonomous Mobile Robots (AMR).
Signature Racking Systems manufactures all structural components in-house at our dedicated production facility located in the Ajman Free Zone, UAE. Structural integrity begins with premium certified coil steel (Q235B and high-yield Q355B), cold-formed into continuous closed-profile uprights and specialized dual-flange runner rails.
| System Parameter | Standard Heavy-Duty Specification | Cold-Storage / Extreme Specification |
|---|---|---|
| Nominal Load Capacity | 500 kg to 1,500 kg per pallet position | Up to 2,000 kg reinforced payload |
| Operating Temperature | -5°C to +45°C ambient warehouse environments | -30°C to +40°C deep-freeze cold chain |
| Rail Profile Geometry | 3.0mm to 3.5mm pre-galvanized high-yield structural steel | Continuous hot-dip galvanized (HDG) or zinc-aluminum-magnesium alloy |
| Shuttle Speed (Loaded / Empty) | 0.8 m/s (loaded) | 1.1 m/s (empty) | 0.6 m/s (loaded) | 0.9 m/s (empty) with cryogenic lubricants |
| Power Management | 48V 20Ah–40Ah Lithium Iron Phosphate (LiFePO4) | Low-temperature heated battery pack or supercapacitor array |
| Structural Standards Compliance | FEM 10.2.02, EN 15512, RMI (ANSI MH16.1) | Seismic Zone IV engineering compliance with horizontal bracing trusses |
Operating across 20+ years of specialized fabrication and engineering in the United Arab Emirates, Signature Racking Systems F.Z.C bridges European structural engineering codes with cost-effective, high-throughput manufacturing. As a direct OEM manufacturer and global exporter, we oversee the full fabrication lifecycle without reliance on third-party roll formers:
Continuous multi-station roll-forming lines guarantee rail straightness and profile pitch consistency within ±1.5mm along a 100-meter continuous run, ensuring zero shuttle jam incidents.
Repeatable connector slotting at standard 50mm and 75mm beam increments. Precision-punched safety docking stops and guide entries allow smooth forklift operator shuttle insertion.
Automated pre-wash, phosphating, shot-blasting, and electrostatic powder coating cured at 200°C for scratch resistance, alongside GI/HDG options for ambient humidity and extreme maritime air.
For international supply chain contractors and overseas racking distributors, all structural columns, bracing sets, rail assemblies, and accessories are shipped knocked-down (CKD) with comprehensive export packaging. This includes high-density cushioning, edge armor, vapor corrosion inhibitor (VCI) shrink wrapping, and color-coded pallet bundle tags with explicit CAD layout correlation to streamline on-site assembly.
Strategic procurement managers do not merely purchase steel profiles; they invest in infrastructure adaptable to the next decade of supply chain disruption. Global logistics intelligence underscores several transformative shifts reshaping radio shuttle acquisition:
While 2-way shuttles dominate single-lane dense storage, 4-way shuttles that traverse cross-aisles and change vertical levels via lifts are capturing automated micro-fulfillment centers.
Modern radio shuttle lanes are increasingly serviced by automated counterbalanced AGVs rather than manual forklift operators, creating 24/7 dark warehouses with zero human presence inside storage blocks.
Energy costs represent up to 60% of cold store operating budgets. High-density shuttle systems consolidate cubic volume, reducing refrigerated air volume requirements by 35% compared to reach-truck racking.
Next-generation shuttles transmit real-time motor vibration, wheel wear, and battery cell thermal data over industrial 5GHz Wi-Fi/5G private networks directly into cloud Warehouse Control Systems (WCS).
To enable our engineering drafting team to deliver a millimeter-accurate load calculation and 3D CAD simulation within 48 hours, ensure your RFQ incorporates the following structural parameters:
Connect directly with our senior racking structural engineers in Ajman, UAE. Share your facility layout, pallet load profiles, and throughput targets for a complimentary CAD concept and load-deflection proposal.
